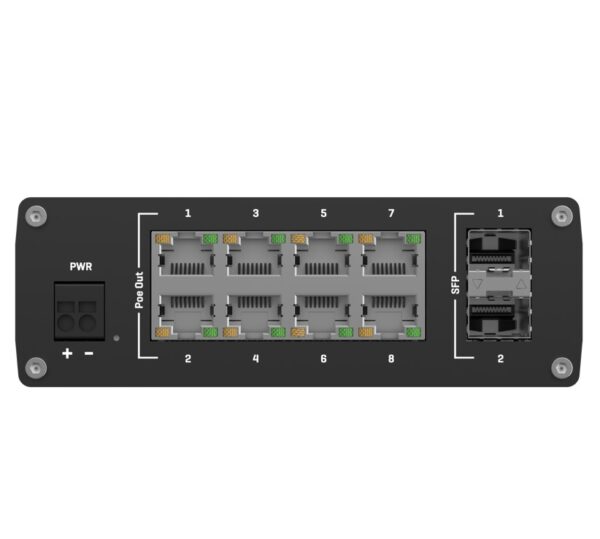

Teltonika TSW200 Industrial PoE+ Ethernet Switch, 2x SFP Ports, 8x PoE+ Ports with speeds up to 1000 Mbps, Power Up to 240 W, PSU excluded - Image 1

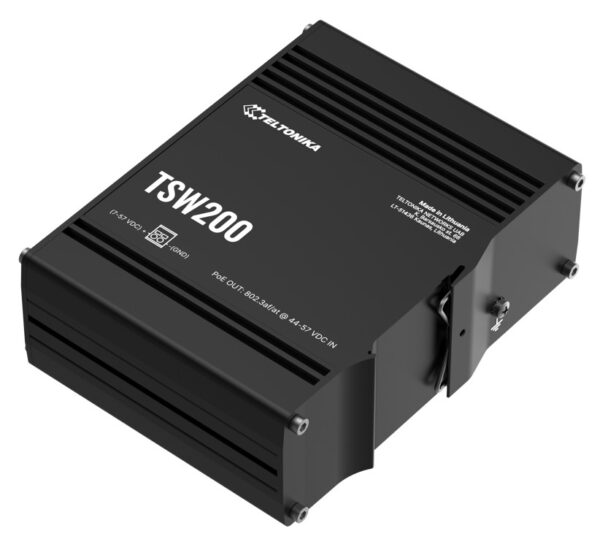

Teltonika TSW200 Industrial PoE+ Ethernet Switch, 2x SFP Ports, 8x PoE+ Ports with speeds up to 1000 Mbps, Power Up to 240 W, PSU excluded - Image 2

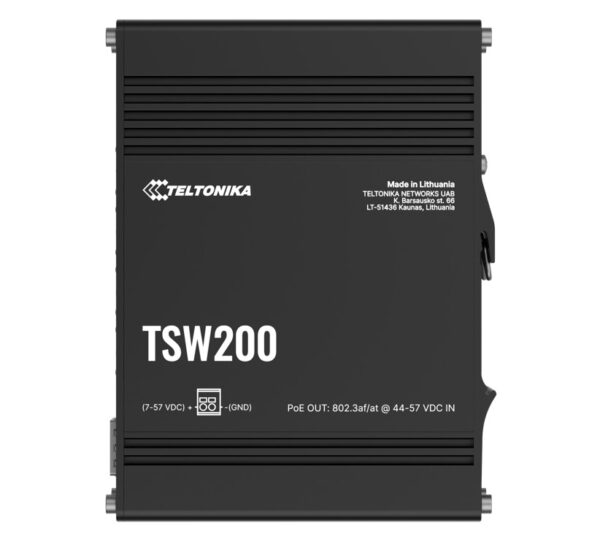

Teltonika TSW200 Industrial PoE+ Ethernet Switch, 2x SFP Ports, 8x PoE+ Ports with speeds up to 1000 Mbps, Power Up to 240 W, PSU excluded - Image 3

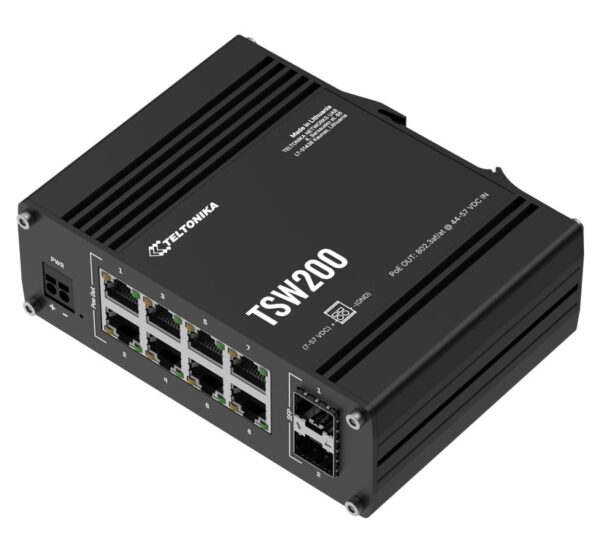

Teltonika TSW200 Industrial PoE+ Ethernet Switch, 2x SFP Ports, 8x PoE+ Ports with speeds up to 1000 Mbps, Power Up to 240 W, PSU excluded - Image 4

Teltonika TSW200 Industrial PoE+ Ethernet Switch, 2x SFP Ports, 8x PoE+ Ports with speeds up to 1000 Mbps, Power Up to 240 W, PSU excluded

Teltonika TSW200000050, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable

Availability: In stock SKU: TSW200000050/TSW2000000B0 Category: Brand:

Original price was: $243.10.Current price is: $184.00. (inc. of GST)

Myithub
Availability: In stock

Description

TSW200 is an industrial Ethernet switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power.

  • SFP : 2 x SFP ports for long-range Fiber-optic communication
  • PoE+ : 8 x PoE+ ports with 802.af, 802.3at standard support
  • POWER BUDGET : Total power budget at PSE up to 240 W
  • ETHERNET : 8 x Gigabit Ethernet with speeds up to 1000 Mbps

What’s in it for you?

  • Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • MAC address table: 2000 entries
  • DC Power over Ethernet (PoE)
  • Warranty: –
Powering option
  • 2 pin, push-in, terminal block
Input voltage range
  • 7-57 VDC
Input voltage range for PoE
  • 44-57 VDC
Power consumption
  • Idle: < 2 W, Max: < 9 W (no PoE device connected)
PoE standard
  • 802.3af/at (up to 30 W per port, total power budget - 240 W)
Ethernet
  • 8 x 10/100/1000 Mbps Ethernet ports
SFP
  • 2 x SFP port for Optical interface
Status LEDs
  • 16 x Ethernet, 1 x Power, 2 x SFP activity
Ingress protection rating
  • IP30
Operating temperature
  • -40 °C to 75 °C
Housing
  • Aluminium housing with wall or DIN rail mounting option and grounding capability
Dimensions
  • 132 x 44.2 x 95.1 mm
Installation
  • Desktop, wall or DIN Rail mountable (additional kit needed)

Datasheet
