Teltonika Flat Ethernet Switch, 3-Pin Power Input, Flat and compact design, Plug-and-Play, 7-57 VDC, PSU excluded

Teltonika NETWORKS TSF010 Flat Ethernet Switch, Unmanaged, Fast Ethernet (10/100), Full duplex, DIN rail

Availability: In stock SKU: TSF010000000 Category: Brand:

Original price was: $113.74.Current price is: $79.00. (inc. of GST)

Myithub
Availability: In stock

Description

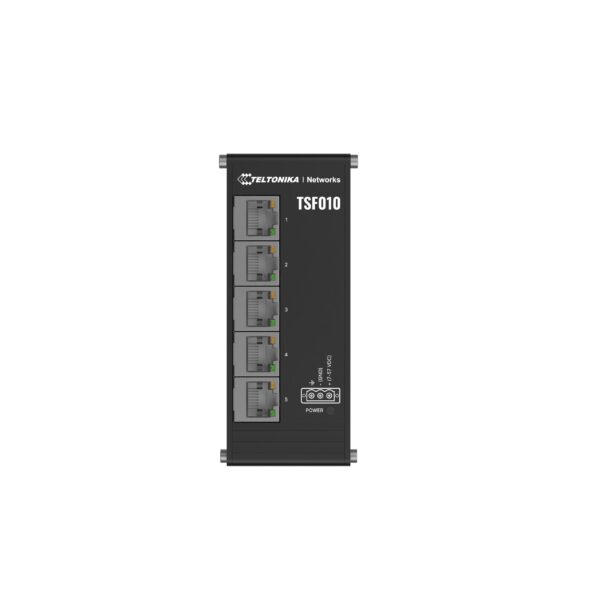

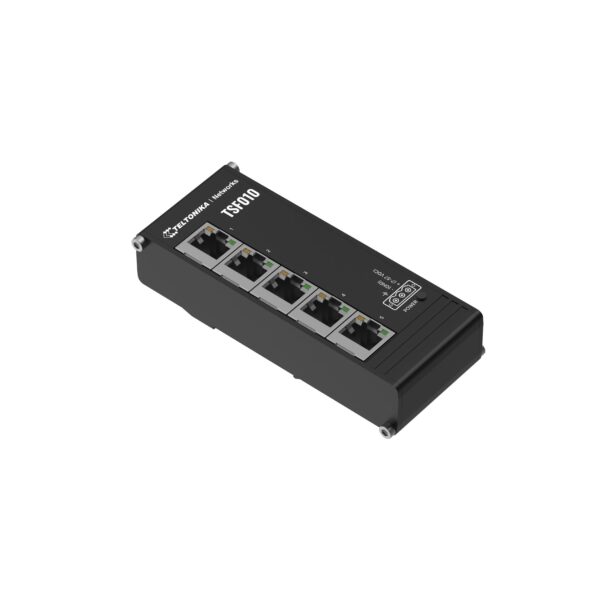

The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.

What’s in it for you?

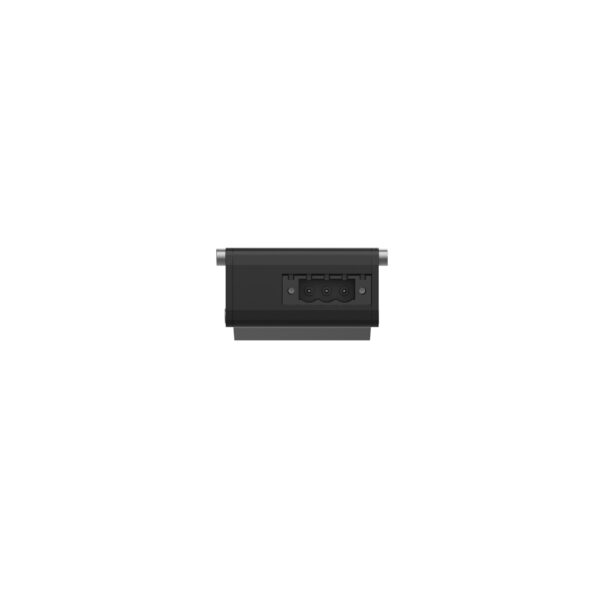

  • 3-PIN POWER INPUT
  • Flexible and tailor-made for industrial use
  • FLAT & COMPACT

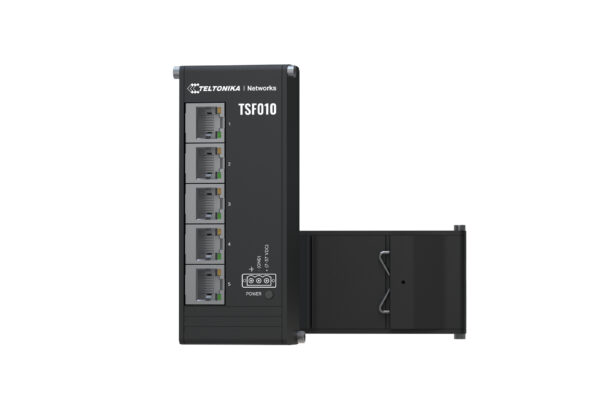

  • INTEGRATED DIN RAIL BRACKET
  • Easy mounting for plug-and-play deployment
  • 7-57 VDC
  • Suitable voltage range for industrial applications
Ports & interfaces
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
  • Installed SFP modules quantity: 0
  • Installed SFP+ modules quantity: 0
  • Fast Ethernet (copper) ports quantity: 5
Weight & dimensions
  • Width: 113 mm
  • Depth: 50 mm
  • Height: 28 mm
  • Weight: 142 g
Power
  • Power source: DC
  • Power supply included: No
  • Input voltage: 7 - 57 V
  • Power consumption (typical): 1 W
  • Power consumption (max): 1,5 W
Operational conditions
  • Operating temperature (T-T): -40 - 75 °C
  • Operating relative humidity (H-H): 10 - 90%
Network
  • Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Full duplex: Yes
  • Auto MDI/MDI-X: Yes
Data transmission
  • MAC address table: 2048 entries
  • Switching capacity: 10 Gbit/s
  • Jumbo frames support: Yes
  • Jumbo frames: 9216
Management features
  • Switch type: Unmanaged
Design
  • Rack mounting: No
  • Stackable: No
  • Form factor: DIN rail
  • Product colour: Black
  • Housing material: Aluminium
  • International Protection (IP) code: IP30
  • DIN rail mounting: Yes
Power over Ethernet (PoE)
  • Power over Ethernet (PoE): No
