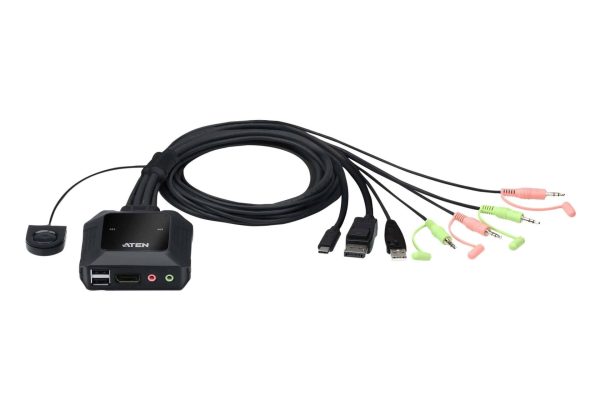

Aten 2-Port USB-C DisplayPort Hybrid Cable KVM Switch

Aten 2-Port USB-C DisplayPort Hybrid Cable KVM Switch

Availability: In stock SKU: CS52DP-AT Category: Brand:

Original price was: $173.80.Current price is: $100.00. (inc. of GST)

Myithub | aten trusted seller myithub
Availability: In stock

Description

As an increasingly mobile workforce hot-desks between home and hybrid offices, agility is the key to effective multitasking and remaining engaged in productivity. The compact CS52DP is one of the best choices to meet these hybrid work challenges head on by revamping your workspace with the power of a cable KVM switch and the mobility of USB-C connectivity. Streamline even the most complex workflows by simply pushing the button on the remote port selector to switch between your tasks on one DisplayPort PC and a mobile USB-C device from a DisplayPort and USB console. The DisplayPort-enabled shared screen further assures outstanding 4K audiovisual quality across two computer platforms. Get agile with the CS52DP to jump start your hybrid work productivity and stay ahead of the pack.

What’s in it for you?

  • One KVM console controls one USB DisplayPort computers and one USB-C device
  • Superior video quality – up to 4096 x 2160 @ 60 Hz
  • Computer selection via remote port selector
  • Supports DisplayPort Alternate Mode (DP Alt Mode) which enables the USB connection to carry DisplayPort signals
Display
  • Built-in display: ❌
System requirements
  • Windows operating systems supported: ✔
  • Linux operating systems supported: ✔
  • Mac operating systems supported: ✔
  • Other operating systems supported: Android, iOS
Ports & interfaces
  • Number of computers controlled: 2
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DisplayPort

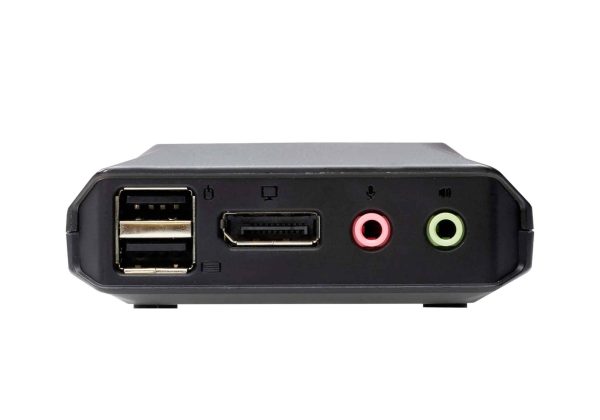

  • Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.2
  • Console USB ports quantity: 2
  • USB connector type: USB Type-A, USB Type-C
  • Headphone outputs: 2
  • Number of microphone inputs: 2
Weight & dimensions
  • Width: 84,2 mm
  • Depth: 83,4 mm
  • Height: 30,4 mm
  • Weight: 303 g
Power
  • Power source: USB
  • Power consumption (typical): 0,74 W
Operational conditions
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
Packaging data
  • Package width: 55 mm
  • Package depth: 155 mm
  • Package height: 223 mm
  • Package volume: 1897,2287222 cm³
  • Package weight: 407 g
Design
  • Rack mounting: ❌
  • Product colour: Black
  • Housing material: Plastic

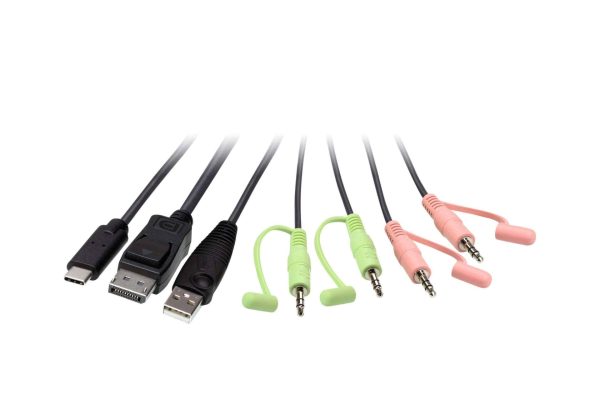

  • Cable length: 1,2 m
  • Remote switch cable length: 1,8 m
  • LED indicators: ✔
Performance
  • HD type: 4K Ultra HD
  • Maximum resolution: 4096 x 2160 pixels
  • HDCP: ✔
  • Hot-Plug support: ✔
Logistics data
  • Master (outer) case net weight: 6,06 kg
  • Master (outer) case width: 328 mm
  • Master (outer) case length: 389 mm
  • Master (outer) case height: 330 mm
  • Master (outer) case weight: 8,49 kg
  • Master (outer) case volume: 42107,1508942 cm³
  • Country of origin: Taiwan

CS52DP manual pdf
CS52DP leaflet
CS52DP other digital assets
