Yealink W80B Multicell DECT Base Station

Yealink W80B Multicell DECT Base Station

Availability: In stock SKU: W80B

$378.38 (inc. of GST)

Or $75.68 today and more time to pay with

W80B Multicell DECT Base Station

Availability: In stock

Description

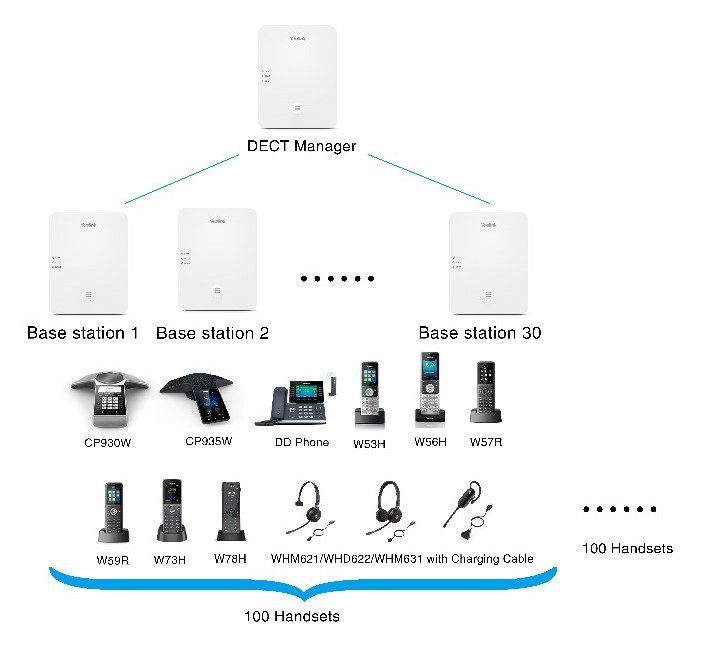

Yealink W80B is an IP base station for use as part of a large, multi-cell wireless IP phone system. The base station communicates with Yealink W53H or W56H Wireless Handsets using DECT, which supports wideband HD audio, encrypts communications, and reduces spectrum density in offices with many Wi-Fi and Bluetooth devices. W80B is a scalable solution for increasing mobility in the office and for improving coverage in larger spaces like warehouses, retail stores, and hangars. When set up as part of a multi-cell system, W80B provides seamless transfer between base stations, which for the user equals more room to roam without worrying about the call dropping.

Yealink recommends for indoor spaces that the base stations be 20 to 50m (66ft to 164ft) apart. Because it is an extended wireless phone system, Yealink W80B also handles many more handsets and calls than the typical system. You can configure up to 30 base stations as part of a single wireless phone system. Each system can support up to 100 handsets with up to 100 concurrent calls as a whole or 8 per base station. W80B connects to your IP network using Ethernet and is powered via PoE. It supports the open SIP protocol and is compatible with 3CX, BroadSoft, and Metaswitch.

Security & Stability

Based on Yealink DECT technology, W80B provides you with both the stable call and the seamless roaming and handover. Wireless data transmission over-the-air is ensured by the DECT encryption. At the same time, TLS and SRTP play a pivotal role in secure SIP communication. Pack Yealink W80B with the powerful Grayscale Upgrade feature, when you perform upgrade for one handset, other handsets are free from this process and the whole system still runs safely.

Advanced DECT Contacts

When a call is coming, the receiver can obtain the caller information, including the caller number and caller name, from the phone screen easily and clearly. Compatibility with several PBX platforms makes contacts from different platforms reachable on the Yealink W80B e.g. Xsi directory and XML contacts. LDAP and Remote Phonebook are also available on the W80B.

Efficient Provisioning & Unified Management

The W80B inherits the Yealink powerful Auto-p mechanism from W60B, allowing the efficient provisioning and effortless mass deployment to be simply implemented via Yealink’s Redirection and Provisioning Service (RPS) and auto provisioning. You can also configure and manage the entire multi-cell system on the DECT Manager web portal, making the deployment, maintenance and upgrade trouble-free as well as saving time and IT costs.

Easy Setup and Deployment

In the multicast network, administrators profit from zero touch provisioning that the system is established as soon as the base station is powered on and connected to the network. If you are in a non-multicast network environment, obtaining the IP address of the base station from the handset directly helps you set up the system faster and easier. To quickly identify the right position for any of the W80B base stations, try the Yealink Deployment ToolKit.

What’s in it for you?

  • Seamless handover and roaming
  • Up to 100 parallel calls
  • Up to 30 base stations
  • Up to 100 handsets
  • Up to 100 SIP accounts
  • Support LDAP/Remote Phonebook
  • Support Xsi Directory
  • DECT radio coverage up to 50m indoors and 300m outdoors
  • Support PoE
  • Compatible with Yealink W56H/W53H
  • Support Opus
Phone Features
Sync over the air
Up to 100 simultaneous calls
Up to 30 base stations
Up to 8 WB (4 active handsets) calls per base
Up to 8 NB calls per base
Up to 100 handsets
Up to 100 VoIP accounts
Up to 2 simultaneous calls per handset
Call hold, call transfer, 3-way conference
Switching between calls
Call waiting, mute, silence, DND
Caller ID with name and number
Anonymous call, Anonymous call rejection
Call forward (always/busy/no answer)
Speed dial, voicemail, redial
Message Waiting Indication (MWI)
Music on hold (server-based)
Local phonebook for up to 100 entries per handset
Remote phonebook/LDAP
Phonebook search/import/export
Call history (all/missed/placed/received)
Reset to factory, reboot
Keypad lock, emergency call
Broadsoft directory, BroadSoft call log
Broadworks feature key synchronisation
Shared Call Appearance (SCA)
Management
Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
Auto-provision with PnP
Handset upgrade: OTA (Over-The-Air)
Configuration: browser/phone/auto-provision
Trace package and system log export
Audio Features
Full-duplex speakerphone
Hearing Aid Compatibility (HAC) compliant
DTMF
Wideband codec: Opus, AMR-WB (optional), G.722
Narrowband codec: AMR-NB (optional), PCMU, PCMA, G.726, G.729, iLBC
VAD, CNG, AGC, PLC, AJB
Network Features
SIP v1 (RFC2543), v2 (RFC3261)
SNTP/NTP
VLAN (802.1Q and 802.1P)
802.1x, LLDP
STUN Client (NAT Traversal)
UDP/TCP/TLS
IP assignment: static/DHCP
Support outbound proxy server backup
Security
Open VPN
Transport Layer Security (TLS)
HTTPS (server/client), SRTP
Digest authentication
Secure configuration file via AES encryption
Support SHA256/SHA512/SHA384
DECT
Frequency bands: 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US)
DECT Standards: CAT-iq2.0
Interface
1 x RJ45 10/100M Ethernet port
Power over Ethernet (IEEE 802.3af), Class 1
Physical Features
Indoor Range: 20m~50m (The ideal distance is 50m)
Outdoor Range: 300m (in ideal conditions)
Wall mountable
Three LED indicators on W80B:
- 1 x DECT LED
- 1 x Role LED
- 1 x LAN (Power Indicator & Network Status) LED
External Yealink AC adapter: AC 100-240V Input and DC 5V/1.2A Output
Colour: Pearl White
Dimension: 130 mm x 100 mm x 25.1 mm
Operating humidity: 10~95%
Operating temperature: 0~+40°C (+32~104°F)
