VIGI C540V – TP-Link VIGI 4MP C540V Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera,Two-Way Audio, Smart Detection

$158.00 (inc. of GST)

Every Corner Covered, Every Area Focused. VIGI 4MP Outdoor Full-Colour Dual-Lens Varifocal Pan Tilt Network Camera

Availability: In stock SKU: VIGI C540V Category:
Tp-link logo - myithub
Availability: In stock

Description

Human & Vehicle Classification

Intelligently distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

VIGI Surveillance Solution

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business that you’ve worked hard to build—whenever, wherever. Outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

What’s in it for you?

  • 4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details.
  • 24h Full-Colour:: Captures 24 hours of full-color details, even in pitch-black conditions, thanks to a large-aperture lens, a high-sensitivity sensor, and 4× attached supplemental lights.
  • 3× Zoom: Allows for closer viewing of objects in expansive areas.
  • Instant Zoom: Zooming is instant without suffering from delays and image dragging.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, removes/abandons objects, or enters/exits a certain region.
  • Powerful Pan Tilt: Customized patrol routes and auto-tracking provide more intelligent options to monitor key areas and improve security within your property.
  • Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
  • Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
  • H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
  • IP66 Waterproof: Reliable IP66 for stable outdoor performance.
  • Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256GB).
CAMERA
Image Sensor
  • 1/3” Progressive Scan CMOS
Shutter Speed
  • 1/3 to 1/10000 s
Slow Shutter
  • Yes
Minimum Illumination
  • 0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism
  • IR Cut Filter
Day/Night Switch
  • Day/Night/Auto/Schedule-Switch
Zoom
  • 3x Mixed Zoom
LENS
Focal Length
  • 4-12 mm (Mixed Zoom)
Aperture
  • F1.6
FOV
  • Diagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46°
Lens Mount
  • M12*P 0.5
PTZ
Pan/tilt Range
  • Pan: 0° to 332°, Tilt: 0° to 120°
Pan/tilt Speed
  • Pan Speed:Configurable from 1° to 55°/s; Preset Speed: 55°/s
  • Tilt Speed:Configurable from 1° to 40°/s, Preset Speed 40°/s
Presets
  • 300
Patrol Scan
  • 8 patrols, up to 8 presets for each patrol
Power-off Memory
  • Yes;
  • Auto restore to previous PTZ and lens status after power failure
Park Action
  • Yes;
  • Preset;Patrol Scan
3D Positioning
  • Yes
VIDEO
Max. Resolution
  • 2560 X 1440
Main Stream
  • Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  • Resolution:2560x1440, 2304x1296, 2048x1280, 1920x1080,1280x720
  • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
  • Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  • Resolution:640x480, 352x288, 320x240
  • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control
  • CBR, VBR
Video Compression
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264
H.264 Type
  • Main Profile/High Profile
H.264+
  • Main Stream Supported
H.265 Type
  • Main Profile
H.265+
  • Main Stream Supported
Video Bit Rate
  • Main Stream: 256 Kbps to 4 Mbps
  • Sub-Stream: 64 Kbps to 512 Kbps
ILLUMINATOR
IR LED
  • Quantity: 1
  • Range: 30m
  • Wavelength: 850nm
White LED
  • Quantity: 3
  • Range: 30m
Illuminator On/Off Control
  • Auto/Scheduled/Always on/Always off
ANGLE ADJUSTMENT (MANUAL)
Range
  • Pan: 0° to 332°, Tilt: 0° to 120°
Image Settings
  • Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement
  • BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
  • DWDR
SNR
  • ≥ 52 dB
Image Parameters Switch
  • Yes
Privacy Mask
  • Up to 4 Masks
ROI
  • 1 Region
OSD Setting
  • Yes
AUDIO
Audio Communication
  • Two-Way Audio
Audio Input
  • Yes
Audio Output
  • Yes
Audio Compression
  • Yes
Audio Sampling Rate
  • 8KHz
Environment Noise Filtering
  • Yes
Audio Bit Rate
  • 64 Kbps(G.711 alaw)
NETWORK
Security
  • Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol
  • TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Network Storage
  • NAS (NFS, SMB/ CIFS)
API
  • Open Network Video Interface (Profile S)
Simultaneous Live View
  • 3 Main Streams & 3 Sub-Streams
Client
  • VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser
  • Google Chrome® 57 and above
  • Firefox® 52 and above
  • Safari® 11 and above
  • Microsoft® Edge 91 and above
Cloud
  • Yes
ONVIF
  • Yes
INTERFACES
Network Interface
  • 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm
  • N/A
Reset Button
  • Yes
Power
  • DC Power Port
On-board Storage
  • Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
Built-in Microphone
  • Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker
  • Yes
Audio
  • N/A
ALARM AND EVENT MANAGEMENT
Smart Event
  • Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event
  • Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage
  • Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method
  • N/A
Output Notification
  • Message Push
GENERAL
Package Contents

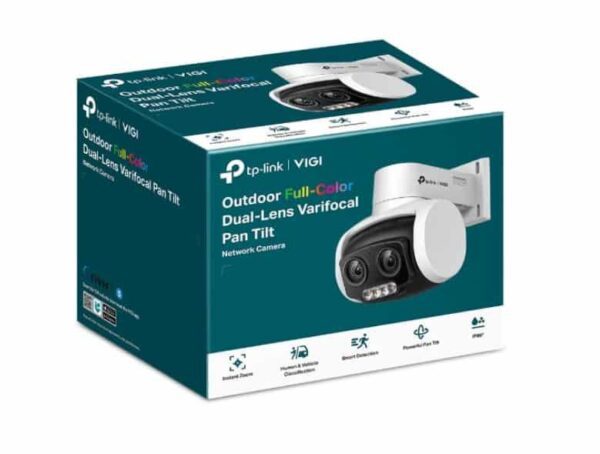

  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories
Operating Temperature
  • -30–60 °C
Storage Temperature
  • -40–60 °C
Storage Humidity
  • 95% or Less (Non-Condensing)
Operating Humidity
  • 95% or Less (Non-Condensing)
Material
  • Plastic
Power Supply
  • 12V DC ± 5%, 5.5mm Coaxial Power Plug
  • PoE (802.3at, class 4)
Power Consumption
  • Maximum: 14 W
  • Typical (Day Mode): 2.9 W
  • Typical (Night Mode with IR LED): 5.7 W
  • Typical (Night Mode with White LED): 6.1 W
Protection
  • IP66
Product Dimensions (L x W x H)
  • 139*136*107 mm
Certifications
  • CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
