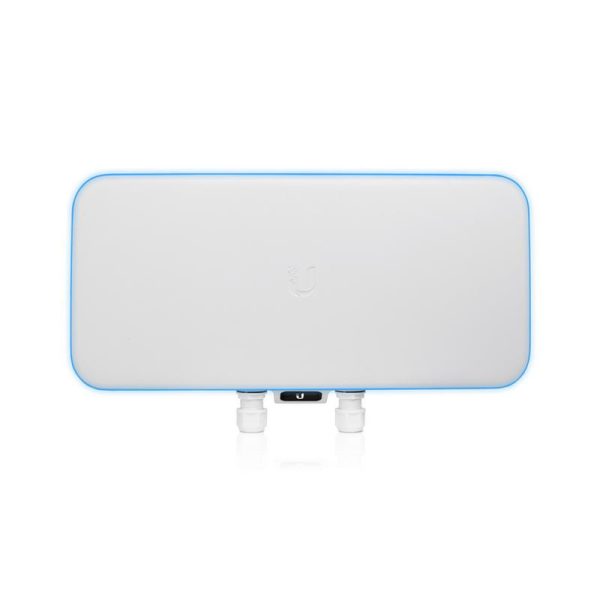

Ubiquiti UniFi WiFi BaseStationXG Wi-Fi Access Point – White

Ubiquiti UniFi WiFi BaseStationXG Wi-Fi Access Point – White

Availability: Out of stock SKU: UWB-XG

$2,190.10 (inc. of GST)

Buy now, pay smarter. Learn more

802.11AC Wave2 Super-Capacity Indoor/Outdoor Quad-Radio WiFi Basestation with RF Channel Filtering and Directional Beam Shaping Antenna Technology.

Availability: Out of stock

Description

The World’s Highest Capacity Wi-Fi AP

802.11AC Wave2 Super-Capacity Indoor/Outdoor Quad-Radio WiFi Basestation with RF Channel Filtering and Directional Beam Shaping Antenna Technology.

Elegant Industrial Design

Available in black, the sleek UniFi WiFi BaseStationXG is a versatile access point with multiple mounting options to suit your application.

Designed for Stadiums and Event Venues

Featuring maximum wireless performance combined with wireless security, the UniFi WiFi BaseStationXG is ideal for ultra high density environments, such as event venues, festivals, and stadiums, where there are numerous clients in a relatively small space.

Superior Capacity for Large Crowds

Featuring low-latency QoS (Quality of Service), the UniFi WiFi BaseStationXG supports up to 1500 clients with 12 MU-MIMO chains (500 clients with 4 MU-MIMO chains per client radio).

RF Energy Steering

True cellular Wi-Fi using multiple APs – its selectable directional beamforming antenna allows for cell size optimization to maximize coverage.

RF Channel Filtering

Provides isolation for seamless parallel radio operation.

Spectral Security

The UniFi WiFi BaseStationXG delivers unprecedented wireless awareness and security, including tools for real-time spectrum monitoring, airtime utilization analytics, and intrusion detection/prevention. Using a persistent spectral scan, the AP constantly monitors the RF environment to check for both potential malicious activity and the best channel for network performance

Advanced Features in UniFi Controller

Featuring an intuitive user interface, the UniFi Controller conducts device discovery, provisioning, monitoring, and configuration for centralized control of UniFi devices.

What’s in it for you??

  • Powerful Hardware – The UniFi WiFi BaseStation XG features the latest in Wi-Fi 802.11ac Wave 2 MU-MIMO technology combined with dedicated security and Bluetooth radios.
  • Intuitive UniFi Controller Software – The system integrator can leverage the controller to easily configure and administer an enterprise Wi-Fi network.
  • Expandable – The system integrator can start with one and expand to thousands while maintaining a single unified management system.
  • Save Money and Save Time – UniFi comes bundled with a software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. For more information about UniFi Cloud or UniFi Elite service

Datasheet and User Guide

Dimensions
471.1 x 257.5 x 94.3 mm
Dimensions (Without Mount)
(18.55 x 10.14 x 3.713")
Weight
3.2 kg
Weight (Without Mount)
(7.055 lb)
Networking Interface
(1) 10/100/1000 RJ45 Ethernet Port
(1) 1/10 Gbps ICM Ethernet Port
Button
Reset
LED
RGB, Software-Controllable
Power Method
802.3bt PoE
Power Supply
50VDC, 1.2A Gigabit PoE
Power Save
Supported
Beamforming
Supported
Max. Power Consumption
31W
Supported Voltage Range
44-57VDC
Max. TX Power
25 dBm
MIMO
(3) 4 x 4
Operating Frequency
5 GHz
Antenna
Integrated Dual-Mode Antenna Array
Antenna Gain
Small Cell
15 dBi
Large Cell
10 dBi
Antenna Beamwidth
Small Cell
50°
Large Cell
90°
Wi-Fi Standards
802.11 a/n/ac/ac-wave2
Wireless Security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
Mounting
VESA-Compatible Mount, Pole/Wall (Brackets Included)
Operating Temperature
-10 to 70° C (14 to 158° F)
Operating Humidity
5 to 95% Noncondensing
Dust and Water Resistance
IP67
Certifications
CE, FCC, IC
Package Contents
UniFi Wi-Fi BaseStation, Adjustment Bracket, Pole Clamp, Carriage Bolts (Qty. 4), Flange Nuts (Qty. 4), Lag Screws (Qty. 4), Gigabit PoE (50V, 1.2A), Power Cord, Quick Start Guide
