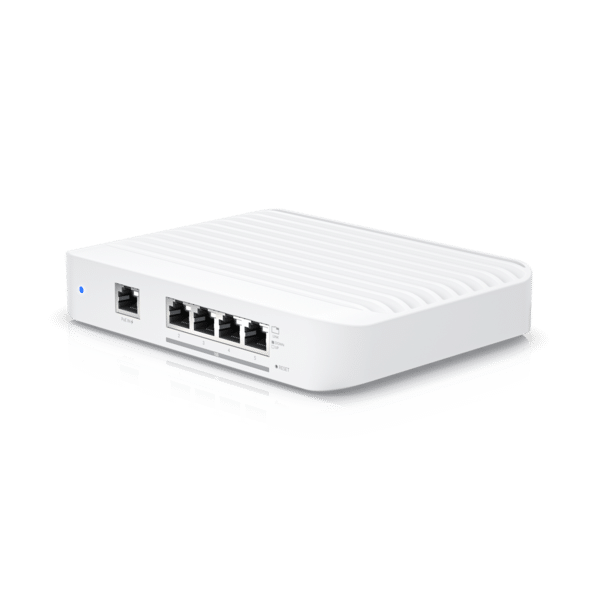

Ubiquiti UniFi Switch Flex XG – Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE, 802.3at PoE+ RJ45 input.

-15%

Ubiquiti UniFi Switch Flex XG – Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE, 802.3at PoE+ RJ45 input.

Availability: Out of stock SKU: USW-Flex-XG

$476.00 (inc. of GST)

Or $95.20 today and more time to pay with

High Performance Managed Layer 2 Multi-Gigabit switch with (1) PoE input and (4) 10GbE Ethernet ports

Availability: Out of stock

Description

The Switch Flex XG (USW Flex XG) is a fully managed, mult-gigabit, Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input. The USW Flex XG sports slim, compact housing and can be mounted on a desktop*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

What’s in it for you?

  • (1) GbE, 802.3at PoE+ RJ45 input
  • (4) 10GbE RJ45 ports
  • Compact, slim housing
  • Can be powered with a 5V, 5A USB-C adapter
  • *Fanless Switch, Do not stack other hardware on the USW Flex XG, will affect heat dissipation

Mechanical
Dimensions
  • 135 x 185 x 32 mm (5.31 x 7.28 x 1.27")
Weight
  • 1.2 kg (2.65 lb)
Enclosure Material
  • Polycarbonate
Hardware
Total Non-Blocking Throughput
  • 41 Gbps
Switching Capacity
  • 82 Gbps
Forwarding Rate
  • 61.012 Mpps
Max Power Consumption
  • 25W
Power Method
  • (1) 802.3at PoE, 50-57VDC, 25W
  • (1) USB Type-C, 5VDC, 5A
Power Supply
  • 802.3at PoE (Pins 1, 2+/3, 6- or 4, 5+/7, 8-)
  •  AC/DC Power Adapter, 5VDC, 5A, 1.5 m Cord (Included)
Supported Voltage Range
  • 90 to 264VAC (Adapter)
ManagementInterface
  • EthernetIn-Band
Networking Interfaces
  • (1) 10/100/1000 Mbps RJ45 Ethernet
  • (4) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet
Services
  • SMB Layer 2 Gigabit Ethernet Switch
ESD/EMP Protection
  • Air: ± 16 kV, Contact: ± 12 kV
Button
  • Factory Reset
Operating Temperature
  • -5 to 45° C (23 to 113° F)
Operating Humidity
  • 10 - 90% Noncondensing
Certifcation
  • CE, FCC, IC
LEDs
System
  • Power, Blue/White
  • Flashing White: Bootup in Progress
  • Flashing Blue: Firmware Upgrading
  • Steady White: Factory Defaults, Awaiting Adoption
  • Steady Blue: Device is Adopted
Ethernet
  • White: Link or Activity
