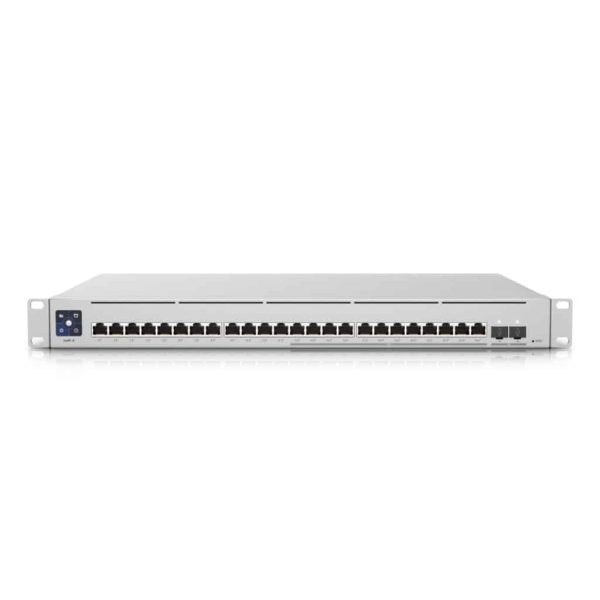

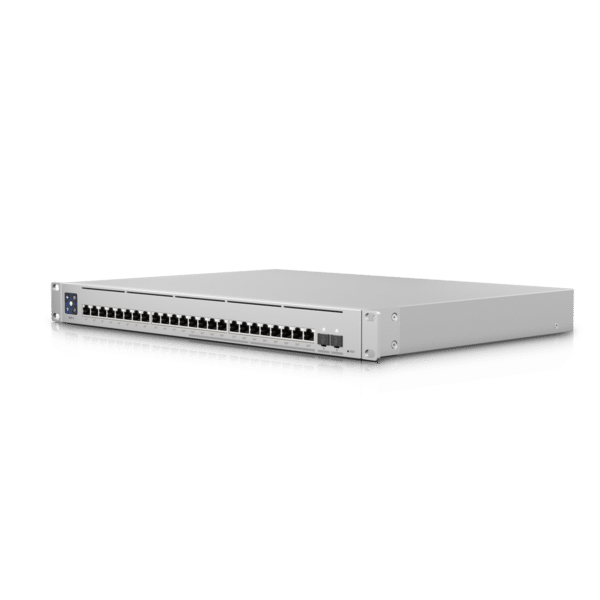

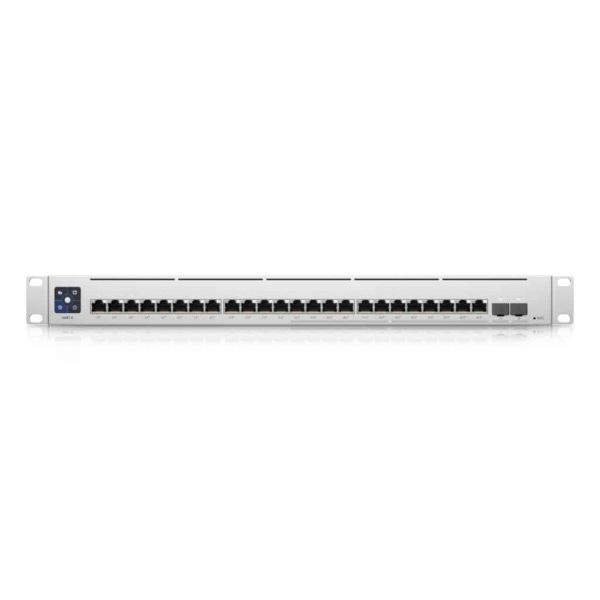

Ubiquiti Switch Enterprise 24-port PoE+ 12×2.5G 12x1G Ports, Ideal For Wi-Fi 6 AP, 2x 10g SFP+ Ports For Uplinks, Managed Layer 3 Switch

-16%

Ubiquiti Switch Enterprise 24-port PoE+ 12×2.5G 12x1G Ports, Ideal For Wi-Fi 6 AP, 2x 10g SFP+ Ports For Uplinks, Managed Layer 3 Switch

Availability: Out of stock SKU: USW-Enterprise-24-PoE

$1,243.00 (inc. of GST)

Or $248.60 today and more time to pay with

Ubiquiti Networks USW-ENTERPRISE-24-POE, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting

Availability: Out of stock

Description

Managed Layer 3 switch with (12) 2.5G RJ45 ports with PoE+ for WiFi 6 APs, (12) Gigabit RJ45 ports with PoE+, and (2) 10G SFP+ ports for fiber uplinks.

Configurable Gigabit Layer 3 switch with auto-sensing 802.3at PoE+. It offers (12) 2.5G RJ45 Ethernet ports, (12) 1G RJ45 Ethernet ports, and (2) 10G SFP+ ports, providing 2.5G PoE links to your WiFi 6 APs and 10G fiber uplinks to your network. Features include a 1.3′ touchscreen, single-row RJ45 port layout for easy patch panel cable management, and UniFi SmartPower Redundant Power System* (USP-RPS) support for intelligent protection from internal PSU interruption or failure.

What’s in it for you?

(12) 2.5G 802.3af/at PoE+ RJ45 ports
(12) 1G 802.3af/at PoE+ RJ45 ports
(2) 10G SFP+ ports
400W total PoE capacity
1.3′ touchscreen with AR switch management
UniFi SmartPower RPS DC input

Mechanical
Dimensions
  • 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
Weight
  • Without Mount: 5.11 kg (11.27 lb)
  • With Mount: 5.2 kg (11.46 lb)
Enclosure Materials
  • SGCC Steel
Mount Material
  • SGCC Steel
Hardware
Total Non-Blocking Throughput
  • 62 Gbps
Switching Capacity
  • 124 Gbps
Forwarding Rate
  • 92.25 Mpps
Max. Power Consumption
  • 550W
Power Method
  • (1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz
  • (1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A
Power Supply
  • AC/DC, Internal, 550W
Management Interface
  • Ethernet In-Band
Networking Interfaces
  • (12) 10/100/1000 Mbps RJ45 Ethernet
  • (12) 100/1000/2500 Mbps RJ45 Ethernet
SFP+ Interfaces
  • (2) 1/10G SFP+
PoE Interfaces
  • (24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE+ Wattage per Port by PSE
  • 34.2W
Voltage Range 802.3af Mode
  • 44 to 57V
Voltage Range 802.3at Mode
  • 50 to 57V
Services
  • SMB Layer 3 PoE Gigabit Ethernet Switch
ESD/EMP Protection
  • Air: ± 16 kV, Contact: ± 12 kV
Operating Temperature
  • -5 to 40° C (23 to 104° F)
Operating Humidity
  • 10 - 95% Noncondensing
Certifications
  • CE, FCC, IC
LEDs
System
  • (1) Bootup Animation: Bootup in Progress
  • Firmware Upgrade Icon: Firmware Upgrading
  • Steady White: Factory Defaults, Awaiting Adoption
  • Steady Blue: Device is Adopted
Ethernet
  • White: Link or Activity
SFP+
  • White: Link or Activity
