Ubiquiti Point-to-MultiPoint (PtMP) 5GHz, Functions in PtMP Environment w/ LTU-PRO/LTU-LITE/LTU-LR as Clients

5 GHz PtMP LTU BaseStation Radio, functions in a PtMP environment using the LTU Pro, LTU Lite, or LTU LR as Clients

Availability: In stock SKU: LTU-ROCKET Categories: ,

Original price was: $885.50.Current price is: $713.00. (inc. of GST)

Ubiquiti
Availability: In stock

Description

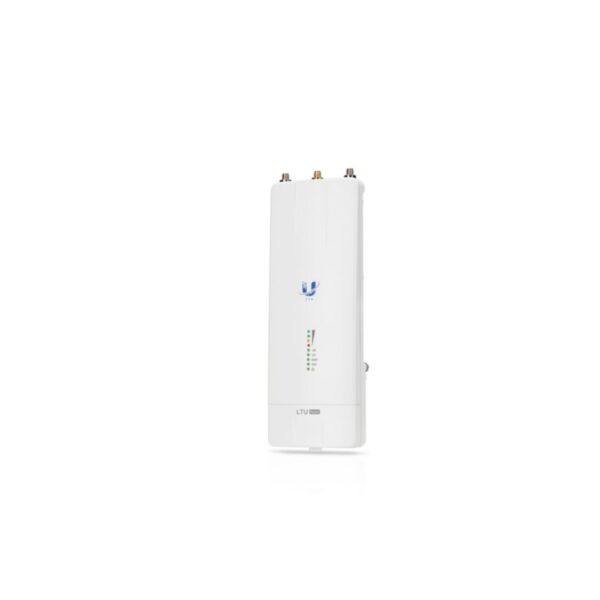

Incorporating Ubiquiti’s proprietary LTU technology, the LTU-Rocket is a Point-to-MultiPoint (PtMP) 5 GHz Access Point featuring 2+ Mpps processing, proprietary RF filtering, and flexible GPS sync for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. A custom co-processor is included for future performance and feature upgrades.

Superior Performance

LTU is a new, proprietary technology with custom silicon and radio design that break through the limitations of 802.11 Wi-Fi technology. This enables LTU to deliver far superior performance over previous airMAX products that are based on 802.11 Wi-Fi.
The LTU Rocket is designed for WISPs from the ground floor up. Its core communications processing engine enables low latency, long-range capability, DFS flexibility, higher constellations, better power output, and improved receive sensitivity.

Seamless Compatibility

The LTU Rocket is designed to be paired with a variety of Ubiquiti antennas to suit the needs of each installation. The radio includes a mounting bracket that allows it to be used with a 5 GHz airMAX® Sector antenna or airMAX Omni antenna for a complete 5 GHz PtMP BaseStation. You can even pair three LTU Rocket radios with the airPrism® 5 GHz 3×30° HD Sector Antenna for co-location deployments.
The LTU Rocket also works with any CPE device in the LTU family, such as the LTU-Pro.

What’s in it for you?

  • Auto Power Adjustments
  • Signal Control
  • Frequency Split
  • Integrated GPS
  • LTU Configuration Interface
Dimensions 244 x 82 x 48 mm (9.61 x 3.23 x 1.89")
Weight 0.468 kg (16.5 oz)
Enclosure Diecast Aluminum and Polycarbonate
RF Connectors (2) RP-SMA Weatherproof (CH0, CH1) (1) SMA Weatherproof (GPS)
GPS Antenna External Magnetic Base
Power Supply 24V, 1A Gigabit PoE Adapter (Included)
Power Method Proprietary 4-Pair Passive PoE Pins 1, 2; 4, 5+ and Pins 3, 6; 7, 8-
Max. Power Consumption 15W
Voltage Range +18 to +54VDC*

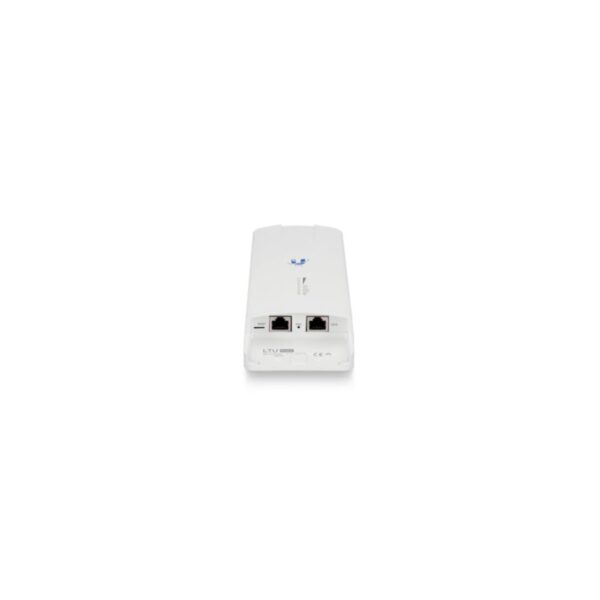

Networking Interface (1) 10/100/1000 Ethernet Port
Mounting Integrated Pole Mount (Included) Rocket Mount Compatible GPS Pole Mount (Included)
Operating Temperature -40 to 55° C (-40 to 131° F)
Weatherproofing IP672**
Certifications FCC Part 15.407 CE EN 302502 v1.2.1, EN 301 893 v1.7.1

LTU-Rocket-AU Datasheet
