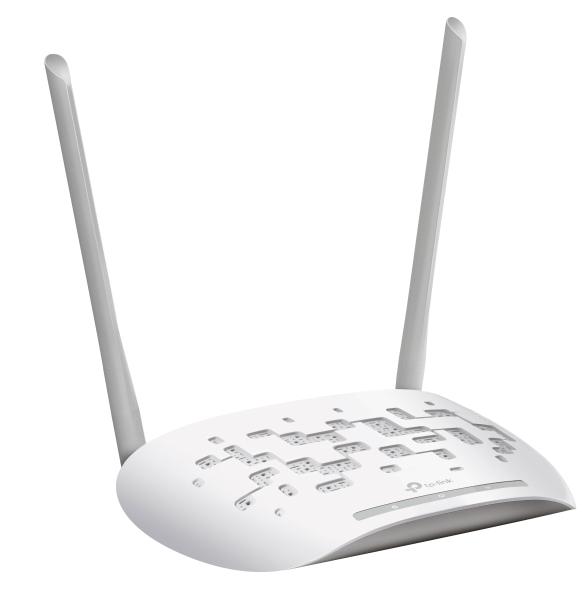

TP-Link TL-WA801N 300Mbps Wireless N Access Point, Multiple Operation Modes, WPA2, Included Passive POE Injector

TP-Link TL-WA801N 300Mbps Wireless N Access Point, Multiple Operation Modes, WPA2, Included Passive POE Injector

Availability: In stock SKU: TL-WA801N

$42.22 (inc. of GST)

Buy now, pay smarter. Learn more

TP-Link TL-WA801N  N300 Wireless N Access Point 2.4GHz (300Mbps) 1x100Mbps LAN 802.11bgn 2*5dBi Detachable Omni Directional Passive PoE WPS button

Availability: In stock

Description

The TP-LINK Wireless N Access Point TL-WA801N is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet-enabled devices such as game consoles, digital media adapters, printers, or network-attached storage devices to a wireless network. The AP supports a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or any other applications that you may wish to use.

Wireless N – Speed & Range

Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, it simultaneously works through two antennas to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!

Multiple Operating Modes- Easy to Build WLAN

Supports multiple operation modes (Access Point, Multi-SSID, Client, Range Extender) to enable various wireless applications to give users a more dynamic and comprehensive experience when using their APs. Multiple operating modes also help you easily build wireless network for hard-to-wire locations or eliminating wireless dead zone.

Passive PoE Supported- More Flexible Deployment

The TL-WA801N is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.

What’s in it for you?

  • 300 Mbps wireless speed ideal for smooth HD video, voice streaming, and online gaming
  • Supports multiple operation modes: Access Point, Multi-SSID, Client, and Range Extender modes
  • Protects your home network with WPA2 encryption and makes quick connection with the push of a button
  • Up to 30 meters (100 feet) of flexible deployment with included Passive Power over Ethernet Injector
HARDWARE FEATURES
Interface1× 10/100 M Ethernet Port(RJ45) Support Passive PoE
ButtonPower On/Off Button, WPS Button, Reset Button
External Power Supply9VDC / 0.6A
Wireless StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )7.1 × 5.1 × 1.4 in (181.6 × 129.5 × 36.2 mm)
Antenna Type2 Fixed Omni-Directional Antennas
WIRELESS FEATURES
Frequency2.4 GHz
Signal Rate300 Mbps at 2.4 GHz
Reception Sensitivity11g 6Mbps: -90dBm 11g 54Mbps: -77dBm 11n HT20 MC7: -73dBm 11n HT40 MC7: -70dBm
Transmit PowerCE: <15dBm; FCC: <20dBm
Wireless ModesAP Mode Multi-SSID Mode Client Mode Range Extender Mode
Wireless FunctionsEnable/Disable Wireless Radio, WMM, Short GI, AP Isolation, Wireless Statistics, Throughput Monitor
Wireless SecurityWEP, WPA/WPA2, WPA/WPA2-PSK encryptions
Quality of ServiceWMM
ManagementSNMP
Advanced FunctionsUp to 30 meters Passive PoE is supported
OTHERS
CertificationCE, FCC, RoHS
Package ContentsWireless Access Point TL-WA801N Power Adapter Passive PoE Power Injector RJ45 Ethernet Cable Quick Installation Guide
System RequirementsMicrosoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an Internet Service Provider (for Internet access)
EnvironmentOperating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH
