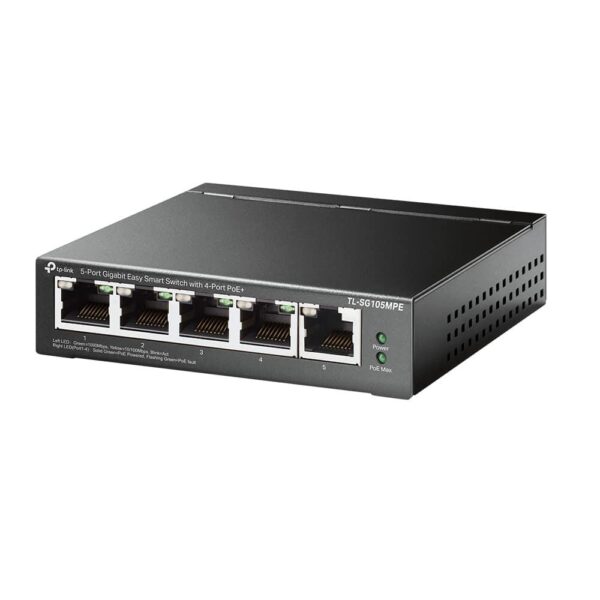

TP-Link TL-SG105MPE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+ Omada

$127.00 (inc. of GST)

TP-Link TL-SG105MPE, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

Availability: In stock SKU: TL-SG105MPE Category: Tag:
Tp-link logo - myithub
Availability: In stock


Professional 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

Multiple Application Scenarios

The TL-SG105MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

Dedicated 4 PoE+ Ports (120 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 120 W PoE power budget* for the 4× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Long Product Life with Durable Metal Casing

Interior components of TL-SG105MPE are protected by high-quality metal casing to ensure a product longevity. Having passed an array of stringent reliability tests, TL-SG105MPE delivers switching performance you can depend on.

What’s in it for you?

  • Five 10/100/1000Mbps RJ45 ports
  • Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
  • Supports PoE power up to 120 W for all PoE ports*
  • Provides network monitoring, traffic prioritisation, VLAN features, and PoE Auto Recovery
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration
  • Fanless design lowers energy consumption and eliminates operating noise
Ports & interfaces
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Weight & dimensions
  • Width: 99,8 mm
  • Depth: 98 mm
  • Height: 25 mm
  • Power source: DC/PoE
  • Power supply included: ✔
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • DC input voltage: 53.5 V
  • Power consumption (max): 137,01 W
Operational conditions
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 95%
  • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
  • 10G support: ❌
  • Port mirroring: ✔
  • Broadcast storm control: ✔
  • Rate limiting: ✔
Data transmission
  • MAC address table: 2000 entries
  • Switching capacity: 10 Gbit/s
  • Forwarding rate: 7,44 Mpps
  • Static route: ✔
  • Jumbo frames support: ✔
  • Jumbo frames: 16
Packaging data
  • Cables included: LAN (RJ-45)
  • IGMP snooping: ✔
  • Loop protection: ✔
Management features
  • Switch layer: L2
  • Web-based management: ✔
  • Rack mounting: ❌
  • Product colour: Black
Power over Ethernet (PoE)
  • Power over Ethernet (PoE): ✔
  • Total Power over Ethernet (PoE) budget: 120 W
