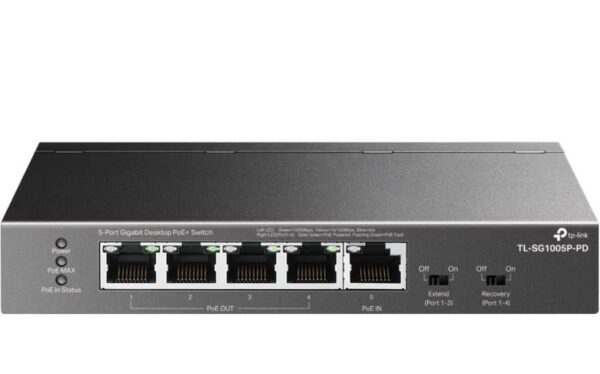

TP-Link TL-SG1005P-PD 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out

Original price was: $95.59.Current price is: $61.00. (inc. of GST)

TP-Link 5-Port Gigabit Desktop PoE+ Switch

Availability: In stock SKU: TL-SG1005P-PD Category:
Tp-link logo - myithub
Availability: In stock

Description

TL-SG1005P-PD is an unmanaged switch with 5 Gigabit ports that requires no AC or DC power supply. It provides 1 PoE (Power over Ethernet) IN port and 4 PoE OUT ports. It can automatically detect and get power from all IEEE 802.3af/at/bt compliant Power Sourcing Equipment (PSE) at port 5 and provide power for IEEE 802.3af/at compliant Powered Devices (PDs) at port 1-4. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Power Over Ethernet

5 RJ45 ports (port 1 to port 5) of the switch support Power over Ethernet (PoE) function. They can automatically detect and get power from all IEEE 802.3af/at/bt compliant Power Sourcing Equipment (PSE) at port 5 and provide power for IEEE 802.3af/at compliant Powered Devices (PDs) at port 1-4.

Overload Arrangement

TL-SG1005P-PD has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption exceeds the PoE power budget, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Intelligent Power Management

Priority (port 1 > port 2 > port 3 > port 4): This function will help protect the system when the system power is overloaded. For example. if the switch is powered by 802.3bt (type 4) with port 1, 2 and 4 consuming 15.4 W respectively, and an additional PoE device with 20 W is connected to port 3, the system will cut off the power of port 4 to compensate for the overload.

What’s in it for you?

  • TP-Link TL-SG1005P-PD 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out
  • Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports
  • 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.*
  • Long-Range PoE+: With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
  • PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
  • Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
  • Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
  • Plug and Play: No configuration and installation required.
  • Power Supply: The product only supports PoE power supply, not AC or DC power supply.
HARDWARE FEATURES
Standards and Protocols
  • IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p
Interface
  • 5× 10/100/1000Mbps RJ45 Ports
  • 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4)
  • 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at)
  • AUTO Negotiation
  • AUTO MDI/MDIX
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity
  • Fanless
Power Supply
  • Only Powered by PoE Device
PoE Ports (RJ45)
  • PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4
  • PoE Out Ports: Ports 1-4, compliance with 802.3af/at
  • PoE Power Budget:
  • -66 W when powered by 802.3bt Type 4 (90 W)
  • -47 W when powered by 802.3bt Type 3 (60 W)
  • -21 W when powered by 802.3at (30 W)
  • -9 W when powered by 802.3af (15.4 W)
Dimensions ( W x D x H )
  • 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
Max Power Consumption
  • 2.68 W (90W PoE In, with no PD connected)
  • 68.59 W (90W PoE In, with 66 W PD connected)
Max Heat Dissipation
  • 9.112 BTU/h (90W PoE In, with no PD connected)
  • 233.206 BTU/h (90W PoE In, with 66 W PD connected)
PERFORMANCE
Switching Capacity
  • 10 Gbps
Packet Forwarding Rate
  • 7.44 Mpps
MAC Address Table
  • 2k
SOFTWARE FEATURES
Advanced Features
  • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
  • PoE Auto Recovery (Ports 1-4)
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
  • IGMP Snooping
Transfer Method
  • Store-And-Forward
OTHERS
Certification
  • CE, FCC, RoHS
Package Contents
  • TL-SG1005P-PD
  • Installation Guide
Environment
  • Operating Temperature: -30–70 ℃ (-22–158 ℉);
  • Storage Temperature: -40–70 ℃ (-40–158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
