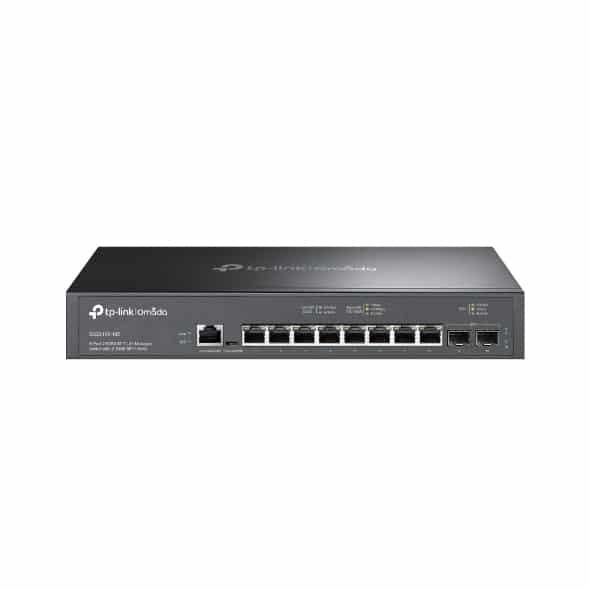

TP-Link SG3210X-M2 network switch Managed L2/L3 2.5G Ethernet (100/1000/2500) 1U Black

$363.00 (inc. of GST)

Omada 8-Port 2.5G L2+ Managed Switch

Availability: In stock SKU: SG3210X-M2 Category:
Tp-link logo - myithub
Availability: In stock

Description

Secure Networking Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise Level Features

A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

Advanced QoS

Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

ISP Features

QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support

IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

What’s in it for you?

  • 2.5 Gbps Speeds: 8× 2.5 Gbps RJ45 ports offer high-speed and reliable connections to other switches and devices.
  • 10G Lightning-Fast Uplink: 2× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Ports & interfaces
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
  • 2.5G Ethernet (copper) ports quantity: 8
  • SFP+ module slots quantity: 2
  • Console port: RJ-45/micro-USB
  • Power connector: AC-in jack
Weight & dimensions
  • Width: 294 mm
  • Depth: 180 mm
  • Height: 44 mm
Power
  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Power consumption (typical): 15 W
Operational conditions
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • Heat dissipation: 51,18 BTU/h
Protocols
  • Management protocols: SNMPv1/v2c/v3, SNTP
  • GARP VLAN Registration Protocol (GVRP): Yes
Network
  • Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
  • 10G support: Yes
  • Port mirroring: Yes
  • IP routing: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Rate limiting: Yes
  • Spanning tree protocol: Yes
  • Head-of-line (HOL) blocking: Yes
  • Ethernet LAN data rates: 100,1000,2500 Mbit/s
  • VLAN support: Yes
  • Virtual LAN features: MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
  • Number of VLANs: 4000
Data transmission
  • MAC address table: 16000 entries
  • Switching capacity: 80 Gbit/s
  • Forwarding rate: 59,52 Mpps
  • Static route: Yes
  • Number of static routes: 48
  • Number of IP interfaces: 16
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Packet buffer memory: 12 MB
Packaging data
  • Cables included: AC
  • Quick start guide: Yes
  • Package type: Box
  • Package width: 528 mm
  • Package depth: 250 mm
  • Package height: 80 mm
  • Package weight: 2,84 kg
Security
  • DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • Security algorithms: HTTPS, SSH, SSH-2, SSL/TLS
  • MAC address filtering: Yes
  • Static port security: Yes
  • SSH/SSL support: Yes
  • Loop protection: Yes
  • BPDU filtering/protection: Yes
  • IP-MAC-Port binding: Yes
  • Authentication: MAC-based authentication, Port-based authentication
  • Password protection: Yes
  • Authentication type: AAA, TACACS+
  • Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)
Management features
  • Switch type: Managed
  • Switch layer: L2/L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Cloud-managed: Yes
  • Traffic classification: Yes
  • ARP inspection: Yes
  • Configuring Location Settings (CLI): Yes
  • System event log: Yes
  • MIB support: RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Design
  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black
  • LED indicators: Yes
  • Number of fans: 2 fan(s)
  • Certification: CE, FCC, RoHS
Performance
  • Fanless: Yes
Logistics data
  • Harmonized System (HS) code: 85176990
Multicast features
  • Multicast support: Yes
  • Multicast Listener Discovery (MLD) snooping: ✔
