TP-Link Archer C24 AC750 Dual-Band Wi-Fi Router 2.4GHz 300Mbps 5GHz 433Mbps 4xLAN 1xWAN 4xAntennas, WPS, Router Access Point and Range Extender Modes

TP-Link Archer C24 AC750 Dual-Band Wi-Fi Router 2.4GHz 300Mbps 5GHz 433Mbps 4xLAN 1xWAN 4xAntennas, WPS, Router Access Point and Range Extender Modes

Availability: In stock SKU: Archer C24

$42.63 (inc. of GST)

Buy now, pay smarter. Learn more

TP-Link Archer C24 AC750 Dual-Band Wi-Fi Router 2.4GHz 300Mbps 5GHz 433Mbps 4xLAN 1xWAN 4xAntennas, WPS, Router Access Point and Range Extender Modes

Availability: In stock

Description

Doubling Bandwidth with Dual Band

AC Dual-band WiFi allows you to connect your demanding devices to the faster and clearer 5 GHz band, while a tradition 2.4 GHz band provides a far-reaching, stable connection to the rest of your devices.

Stable and Far-Reaching

Featuring 4× diagonally-distributed antennas, Archer C24 cover more direction and expand the WiFi coverage, supporting buffer-free surfing and stalling-free downloading.

Multi-Mode 3 in 1

  • Router Mode (Default): Plug in an Ethernet cable to instantly create a private wireless network and share internet access with all your Wi-Fi devices.
  • Access Point Mode: Transform your existing wired network into a wireless one.
  • Range Extender Mode: Boost the existing wireless coverage in your house.

High Integration, Compact Size

Archer C24’s system structure focuses on creating optimal WiFi. The advanced semiconductor technology helps integrate units including CPU, memory, and a 3-stream processing unit onto a single chip to achieve high compatibility, bringing you the same power with a compact design.

As Stable as a Larger One

Archer C24 goes through rigorous repeated testing to ensure a final product reliable under a number of strenuous environments. The final result: 8 randomly selected Archer C24 routers collectively tested for 1,936 hours

What’s in it for you?

  • High-Speed Wi-Fi—AC750 dual-band is ideal for HD video streaming, high-speed downloading.
  • Far-Reaching Coverage—4× antennas deliver far-reaching Wi-Fi and reliable connections.
  • Multi-Mode 3 in 1—Supports Router, Access Point, and Range Extender to add flexibilities.
  • Parental Controls—Manages when and how connected devices can access the internet.
  • Guest Network—Provides separate access for guests while securing the host network.
  • Smooth HD Streaming—Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
  • IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6).
  • Compact and Mountable—Designed to conserve space and complement any décor.
WIRELESS
StandardsWi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz
WiFi SpeedsAC750 5 GHz: 433 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n)
WiFi Range2 Bedroom Houses
4× Fixed Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas
WiFi CapacityMedium
Dual-Band Allocate devices to different bands for optimal performance
Working ModesRouter Mode Access Point Mode Range Extender Mode
HARDWARE
ProcessorSingle-Core CPU

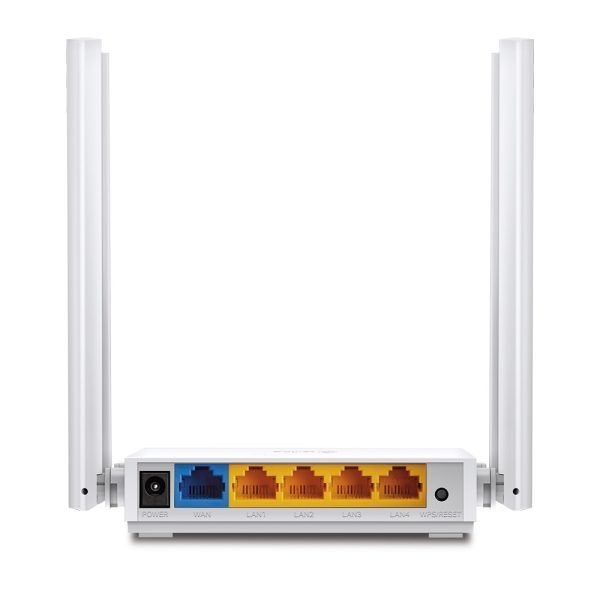

Ethernet Ports1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports
ButtonsWPS Button Reset Button
Power5 V ⎓ 0.6 A
SECURITY
WiFi EncryptionWEP WPA WPA2 WPA/WPA2-Enterprise (802.1x)
Network SecuritySPI Firewall Access Control IP & MAC Binding Application Layer Gateway
Guest Network1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
SOFTWARE
ProtocolsIPv4 IPv6
Parental ControlsURL Filtering Time Controls
WAN TypesDynamic IP Static IP PPPoE PPTP L2TP
Quality of ServiceQoS by Device
NAT ForwardingVirtual Server Port Forwarding Port Triggering DMZ UPnP
IPTVIGMP Proxy IGMP Snooping
DHCPAddress Reservation DHCP Client List Server
DDNSNO-IP Comex DynDNS
Management
PHYSICAL
Dimensions (W×D×H)4.5 x 4.2 x 1.0 in (115 x 106.7 x 24.3 mm)
Package ContentsWi-Fi Router Archer C24 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
OTHER
System RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access)
CertificationsFCC, CE, RoHS
EnvironmentOperating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission PowerCE: <20dBm(2.4GHz) <23dBm(5GHz)
WiFi Reception ensitivity5GHz: 11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm; 11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9: -62dBm 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -73dBm; 11n HT40 MCS7: -71dBm
