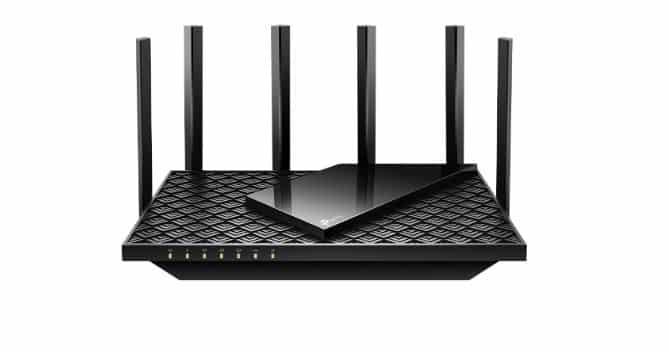

TP-Link Archer AX72 Pro AX5400 Multi-Gigabit WiFi 6 Router

$296.00 (inc. of GST)

AX5400 Multi-Gigabit Wi-Fi 6 Router Faster. Broader. Unstoppable

Availability: In stock SKU: ARCHER AX72 PRO Category:
Tp-link logo - myithub
Availability: In stock


In addition to stunning wireless speeds, AX72 Pro also provides premium wired connections. A 2.5Gbps port and 1 Gbps Port make full use of gigabit speeds from your local ISP. Break through the 1G bottleneck and drive your devices to peak performance. WAN/LAN support gives you remarkable flexibility to tailor both ports to fit your network’s need.

Warp Speed for Smooth 8K Streaming

Drastically improved speeds enable streaming, fast downloading, and gaming, all at same time. Need to go faster? Hop on 5 GHz with full speed boosting features, to stream multiple 8K videos without lagging.

Extensive Wi-Fi Coverage with Advanced Technology

Enjoy stable Wi-Fi connections even in the kitchen and bedroom. High-Power FEM, 6× Antennas, Beamforming, and 4T4R of 5GHz structures combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices.

USB 3.0 Ports

Easily share files between connected devices by plugging into an external drive. You can even make it your personal cloud storage and access it from outside securely.

  • Connect More, Stay Fast: Easily handle dozens of devices streaming and gaming at the same time — OFDMA and MU-MIMO combine to fure-proof your home network by providing greater capacity to connect more devices.
  • OFDMA: Enables differnet devices to share one transmission stream, increasing efficiency.
  • MU-MIMO: Transmits data to different devices simultaneously using multiple streams.

VPN Client and VPN Server: More Granular VPN Function Usage

When using the VPN Client function, the device connected to the router can directly access the VPN server for remote office and cross-regional access. When using the VPN Server function, external devices can access the VPN server, including remote desktops, NAS, printers, cameras, and other devices in the home network.

TP-Link HomeShield: Advanced Security for Your Everyday Devices

With TP-Link HomeShield, enjoy advanced secuirty features delivering a safe environment that protects your family and network’s data and privacy.

  • Home Network Scanner: Real-time network scanner to detect potential threats and security issues.
  • Parental Controls: Manage time online and block inappropritate content keeping your familiy safe online.
  • Quality of Service: Assign your favorite devices to have the fastest connections for top performance.

TP-Link OneMesh™: Flexibly Create Whole Home WiFi with Archer AX72 Pro

Want to build a whole-home Wi-Fi? Archer AX72 Pro supports OneMesh to form seamless whole-home coverage, preventing drops and lag when moving between signals.

Easy Setup and Use

Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AX72 Pro in minutes. The Tether App allows you to manage network settings from any Android or iOS device.

Protect Your Children

Block inappropriate content for your children, and customize a time range for better online habits.

New Connection Notification

You will be notified by your phone when new devices connect. Kick-off any suspicious connections and block them. It’s as simple as that.

Easy Firmware Upgrade

Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto-schedule.

What’s in it for you?

  • Gigabit WiFi for 8K Streaming – 5400 Mbps WiFi for faster browsing, streamings, and downloading, all at the same time.
  • Fully Featured Wi-Fi 6 – Equips with the top structure of 4T4R and HE160 on the 5 GHz bands to enable a 4.8 Gbps ultra-fast connection.
  • Connect 100+ Devices§ – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
  • Extensive Coverage – 6× antennas and Beamforming ensure broad coverage.
  • HomeShield – TP-Link’s premium security services keep your home network safe with cutting-edge features for network and IoT protection.
  • More Vents, Less Heat – Improved vents area unleashes the full power of the whole machine.
  • USB Sharing – 1× USB 3.0 port enables easy media sharing and private cloud building.
  • Easy Setup – Set up the router in minutes with the Tether app.
  • Wi-Fi 6
  • IEEE 802.11ax/ac/n/a 5 GHz
  • IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds
  • AX5400
  • 5 GHz: 4804 Mbps (802.11ax, HE160)
  • 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range
  • 3 Bedroom Houses

  • 6× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas
  • Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
  • High-Power FEM Improves transmission power to strengthen signal coverage
  • 4T4R Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity
  • High

  • Dual-Band Allocate devices to different bands for optimal performance
  • 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients
  • OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients
  • Airtime Fairness Improves network efficiency by limiting excessive occupation
  • DFS Access an extra band to reduce congestion
  • 6 Streams Connect your devices to more bandwidth
Working Modes
  • Router Mode
  • Access Point Mode
  1. 1 GHz Dual-Core CPU
Ethernet Ports
  • 1× 2.5 Gigabit WAN/LAN Port
  • 1× Gigabit WAN/LAN Port
  • 3× Gigabit LAN Ports
USB Support
  • 1× USB 3.0 Port
  • Supported Partition Formats:NTFS, exFAT, HFS+, FAT32
  • Supported Functions:
  • Apple Time Machine
  • FTP Server
  • Media Server
  • Samba Server
  • Wi-Fi On/Off Button
  • Power On/Off Button
  • LED On/Off Button
  • WPS Button
  • Reset Button
  • 12 V ⎓ 2.5 A
WiFi Encryption
  • WPA
  • WPA2
  • WPA3
  • WPA/WPA2-Enterprise (802.1x)
Network Security
  • SPI Firewall
  • Access Control
  • IP & MAC Binding
  • Application Layer Gateway
  • HomeShield Security

  • Real-Time IoT Protection
  • Malicious Site Blocker
  • Intrusion Prevention System
  • DDoS Attack Prevention
  • Home Network Scanner
Guest Network
  • 1× 5 GHz Guest Network
  • 1× 2.4 GHz Guest Network
VPN Server
  • OpenVPN
  • PPTP
  • L2TP
VPN Client
  • OpenVPN
  • PPTP
  • L2TP
  • IPv4
  • IPv6
Service Kits
  • HomeShield
  • OneMesh™ Supported
  • Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Parental Controls
  • HomeShield Parental Controls

  • Custom Profiles
  • Professional Content Filter Library
  • Family Time
  • Bedtime
  • Off Time
  • Time Rewards
  • Family Online Time Ranking
  • Pause the Internet
  • Weekly and Monthly Reports
WAN Types
  • Dynamic IP
  • Static IP
  • PPPoE
  • PPTP
  • L2TP
Quality of Service
  • QoS by Device
Cloud Service
  • Auto Firmware Upgrade
  • TP-Link ID
  • DDNS
NAT Forwarding
  • Port Forwarding
  • Port Triggering
  • DMZ
  • UPnP
  • Virtual Server
  • IGMP Proxy
  • IGMP Snooping
  • Bridge
  • Tag VLAN
  • Address Reservation
  • DHCP Client List
  • Server
  • TP-Link
  • NO-IP
  • DynDNS
  • Tether App
  • Webpage
System Requirements
  • Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
  • Cable or DSL Modem (if needed)
  • Subscription with an internet service provider (for internet access)
  • FCC, CE, RoHS
  • Operating Temperature: 0℃~40℃ (32℉ ~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
WiFi Transmission Power
  • CE:
  • <20dBm{2.4GHz}
  • <23dBm{5.15GHz~5.35GHz}
  • <30dBm{5.47GHz~5.725GHz}
  • FCC:
  • <24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz }
  • <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
WiFi Reception Sensitivity
  • 2.4GHz:
  • 11ac VHT20 MCS0:-94.5dBm
  • 11ac VHT20 MCS8:-72.5dBm
  • 11ac VHT40 MCS0:-92.5dBm
  • 11ac VHT40 MCS9:-69.5dBm
  • 11ax HE20 MCS0:-95dBm
  • 11ax HE20 MCS11:-64.5dBm
  • 11ax HE40 MCS0:-92.5dBm
  • 11ax HE40 MCS11:-62dBm
  • 5GHz:
  • 11ac VHT20 MCS0:-97dBm
  • 11ac VHT20 MCS8:-74dBm
  • 11ac VHT40 MCS0:-95dBm
  • 11ac VHT40 MCS9:-70dBm
  • 11ac VHT80 MCS0:-91.5dBm
  • 11ac VHT80 MCS9:-66dBm
  • 11ac VHT160 MCS0:-86dBm
  • 11ac VHT160 MCS9:-61dBm
  • 11ax HE20 MCS0:-95dBm
  • 11ax HE20 MCS11:-64dBm
  • 11ax HE40 MCS0:-91.5dBm
  • 11ax HE40 MCS11:-62dBm
  • 11ax HE80 MCS0:-88dBm
  • 11ax HE80 MCS11:-58dBm
  • 11ax HE160 MCS0:-85.5dBm
  • 11ax HE160 MCS11:-55dBm
Dimensions (W×D×H)
  • 10.7 × 5.8 × 1.9 in (272.5 × 147.2 × 49.2 mm)
Package Contents
  • Wi-Fi Router Archer AX72
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide
