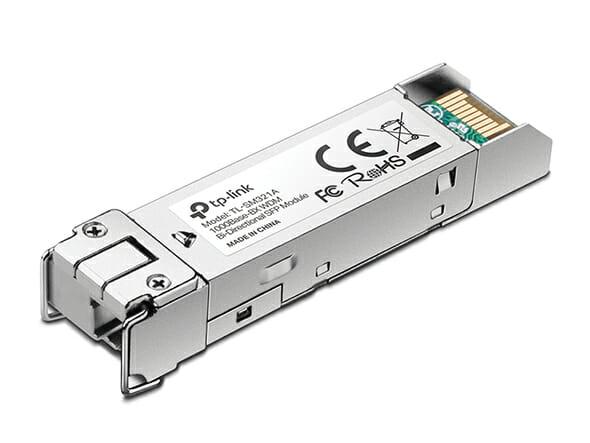

TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321A-2) TX: 1550 nm, RX: 1310 nm, Max. Cable Length 2 KM

-35%

TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321A-2) TX: 1550 nm, RX: 1310 nm, Max. Cable Length 2 KM

Availability: In stock SKU: TL-SM321A-2

$28.00 (inc. of GST)

Buy now, pay smarter. Learn more

TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321A-2) TX: 1550 nm, RX: 1310 nm, Max. Cable Length 2 KM

Availability: In stock

Description

TP-LINK´s TL-SM321A-2 is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, TL-SM321A-2 uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 μm SMF (Single-Mode Fiber).

Also, TL-SM321A-2 incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature.

TP-Link’s TL-SM321A-2 is used for short-and medium distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.

What’s in it for you?

  • Adopts the latest standard 1000Base-BX
  • Up to 2 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
  • Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
  • Supports Digital Diagnostic Monitoring (DDM)
  • Supports Hot Swappable

HARDWARE FEATURES
DDM
  • Yes
SFP-MSA
  • Yes
Hot Swappable
  • Yes
MEDIA CONVERTER & MODULE
Standards and Protocols
  • IEEE 802.3z, TCP/IP
Wave Length
  • TX: 1550 nm
  • RX: 1310 nm
Power Supply
  • 3.3 V
Safety & Emission
  • FCC, CE
Cabel
  • Single-Mode Fiber
Fiber Type
  • 9/125 μm Single-Mode
Max. Cable Length
  • 2 KM
Data Rate
  • 1.25 Gbps
Port Type
  • LC Simplex
Environment
  • Operating Temperature: 0–70 °C (32–158 °F)
  • Storage Temperature: -40–85 °C ( -40–185 °F)
  • Operating Humidity: 10–90% RH, Non-Condensing
  • Storage Humidity: 5–90% RH, Non-Condensing
