StarTech IDE to SATA Hard Drive or Optical Drive Adapter – 40-Pin PATA to 2.5″ SATA HDD/SSD/ODD Converter

IDE2SAT2
StarTech.com IDE to SATA Hard Drive or Optical Drive Adapter – 40-Pin PATA to 2.5″ SATA HDD/SSD/ODD Converter

StarTech IDE to SATA Hard Drive or Optical Drive Adapter – 40-Pin PATA to 2.5″ SATA HDD/SSD/ODD Converter

Availability: In stock SKU: IDE2SAT2
0 out of 5
( There are no reviews yet. )

$40.00 (inc. of GST)

Buy now, pay smarter. Learn more

StarTech.com IDE to SATA Hard Drive or Optical Drive Adapter – 40-Pin PATA to 2.5″ SATA HDD/SSD/ODD Converter, IDE, SATA, 1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin), Red, FCC, CE, TAA, REACH, Marvell – 88SA8052

View cartAvailability: In stock

Description

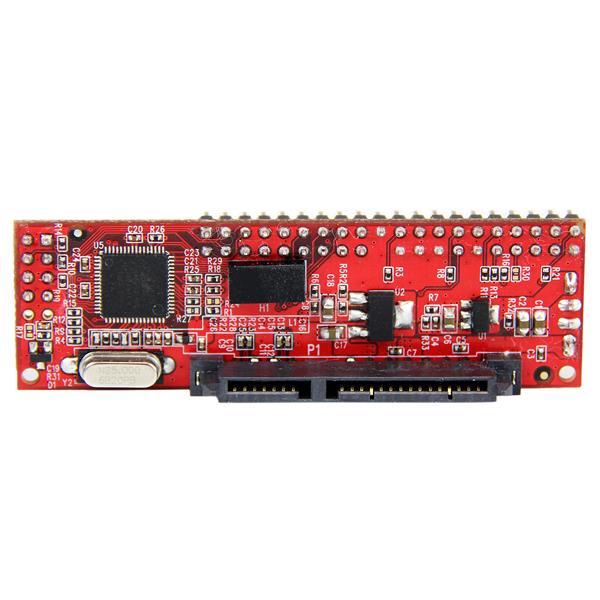

Connect your SATA Hard Drive or Blu-ray/DVD/CD-ROM Drive to an IDE motherboard

The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port – a cost effective solution that allows you to add newer SATA drives, and keep  your existing motherboard.

The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5″/3.5″/5.25″ SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.

The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.

The StarTech.com Advantage

– Blu-ray, DVD and CD-ROM drive compatibility with ODD (Optical Disk Drive) support, from an IDE host connection
– Hassle-free installation, with no software CD required
– Backed by a StarTech.com 2 year warranty and free lifetime technical support

Technical details
  • Sustainability certificates: RoHS
Ports & interfaces
  • Host interface: IDE
  • Output interface: SATA
  • Connector(s): 1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin)
Weight & dimensions
  • Width: 20 mm
  • Depth: 75.5 mm
  • Height: 23 mm
  • Weight: 29 g
Operational conditions
  • Operating temperature (T-T): 5 - 50 °C
  • Storage temperature (T-T): -25 - 80 °C
  • Operating relative humidity (H-H): 15 - 90%
Packaging data
  • Manual: ✔
  • Package width: 175 mm
  • Package depth: 145 mm
  • Package height: 33 mm
  • Package weight: 89 g
Other features
  • Material: Plastic, Steel
Design
  • Internal: ✔
  • Product colour: Red
  • Certification: FCC, CE, TAA, REACH
Features
  • Chipset: Marvell - 88SA8052
  • Data transfer rate (max): 0.133 Gbit/s
  • Logical block addressing (LBA) support: 48 bit
