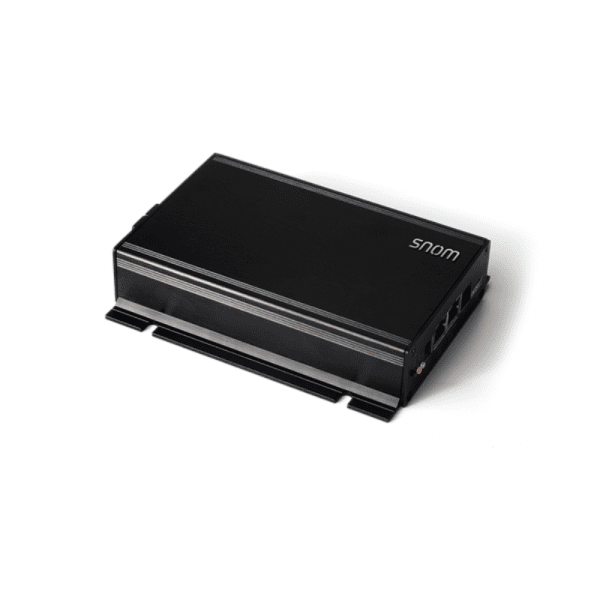

SNOM-PA1 VoIP Paging Amplifier

SNOM-PA1 VoIP Paging Amplifier

Availability: Out of stock SKU: SNOM-PA1

$221.76 (inc. of GST)

Buy now, pay smarter. Learn more

SNOM-PA1 unites the functions of a telephone with a high-performance digital amplifier for broadcasting announcements and supplying background music to assigned rooms, hallways, and office floors.

Availability: Out of stock

Description

The SNOM-PA1 unites the functions of a telephone with a high-performance digital amplifier for broadcasting announcements and supplying background music to assigned rooms, hallways, and office floors.

An announcement via the SNOM-PA1 is effected simply by initiating a call from a snom telephone with its handset, headset, or via handsfree mode. An efficient 4 Watt amplifier provides sufficient coverage for the entire room or floor space.

If a network video camera is connected to the SNOM-PA1, images of the highest quality are transmitted to monitors located in other rooms or on other floors.

Several SNOM-PA1 units can be connected to each other via the built-in switch. The individual network cables can be up to 100 meters long; otherwise common quality impairments caused by long stretches of cabling do not occur. The SNOM-PA1 can be optionally installed on walls or ceilings.

The SNOM-PA1 can be power-fed either via conventional power supply unit connection or through Power-over-Ethernet (PoE). The specific addressing of individual SNOM-PA1 control systems can be centrally configured via the device’s web interface.

Aside of the leading SIP protocol, the SNOM-PA1 can also be addressed via Multicast, thus enabling one transmitter to simultaneously address many receivers. As with all other snom terminals, updates and configuration changes for the SNOM-PA1 can be centrally effected over the server.

For maintenance purposes, the SNOM-PA1 has two 3.5 mm jacks for headset connection. Four freely programmable output pins can be utilized for controlling the SNOM-PA1 via its web interface.

Applications for the Snom PA1 include:

  • Large PA systems driven by external amplifier(s).
  • Small PA systems driven by internal PA1 amplifier (eg. door answering system), and internal relay to open door(s).
  • Phone ringer amplifier with ability to drive strobe light as visual indicator.
  • Multi-cast relay up to 4 SIP identities to four multi-cast IP addresses.

What’s in it for you?

  • Works from your Snom handset
  • 4 Watt power amplifier
  • Works with handset, headset or in handsfree mode
  • Easy to install
  • Broadcasting announcements over 8 ohm speakers
  • No training needed

Datasheet

General Information
Voltage feed via network (PoE): IEEE 802.3af, class 3
Ethernet: 2 x IEEE 802.3, 10/100 Mbps switch
This product does not ship with a power supply. If you are not using a POE enabled network, you must purchase a POE injector or use a standard Snom power supply.
SIP communication + Multicast
Central configuration and maintenance
Web interface menu
Remote volume configuration
4 Watt power amplifier, class D (loudspeaker not included)
Key for announcement of IP address and for resetting
2 LED status indicators
For maintenance purposes: two 3.5 mm jacks for headphone connection
4 freely programmable output pins, configuration via web interface
Robust housing for wall-mount
