NetComm NF20MESH – WIFI 6 Cloudmesh Gateway Modem Router

Original price was: $346.50.Current price is: $176.00. (inc. of GST)

Bring the new adaptive Wi-Fi experience to your home with the CloudMesh Gateway.


Availability: In stock SKU: NF20MESH Category:
Netcomm logo - myithub
Availability: In stock

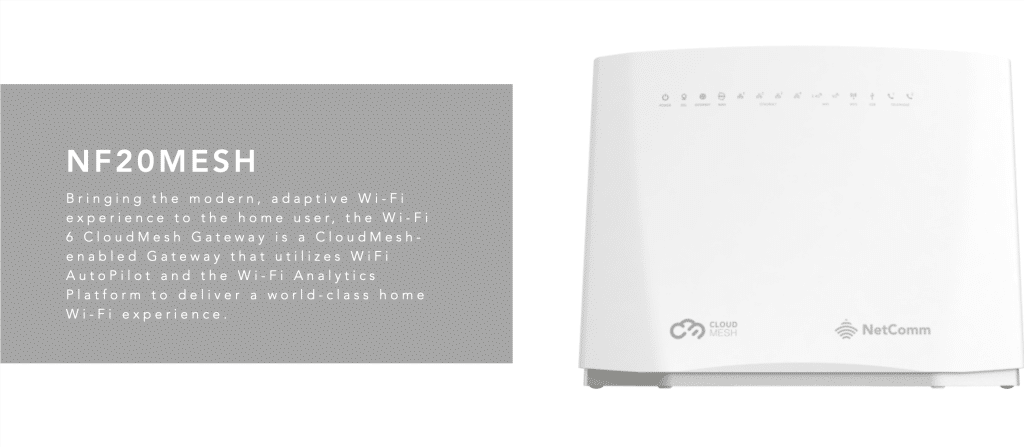

NetComm NF20MESH Wi-Fi 6 CloudMesh Gateway is a CloudMesh-enabled gateway that brings the modern, adaptive Wi-Fi experience to the home user. It utilizes WiFi AutoPilot and the Wi-Fi Analytics Platform to deliver a world-class home Wi-Fi experience.

The Gateway also features VoIP for HD quality voice calls with the capacity to connect 2 phones. It is also made for NBN and  UFB.

Netcomm nf20mesh - myithub

What Are The Features of Netcomm NF20MESH?

Wi-Fi 6 is Here with Netcomm NF20MESH

Wi-Fi 6 is the next generation of Wi-Fi. Delivering significant speed, performance and efficiency improvements, it provides up to four times more device capacity than Wi-Fi 5. These improvements enable end users to stream higher quality with more devices on the network, while still operating at optimal performance. Your Netcomm NF20MESH Wi-Fi 6 Gateway will future-proof your Wi-Fi experience, and enable smart devices throughout your modern, connected home.

Mesh Enabled with Netcomm NF20MESH

The Netcomm NF20MESH CloudMesh Gateway comes equipped with CloudMesh, and when wirelessly paired with a CloudMesh Satellite, can form a powerful Whole Home Wi-Fi Mesh network. With all the controls and setting centralized on the Gateway, it becomes the Wi-Fi Mesh master node, and the Wi-Fi client device can roam seamlessly between the Gateway and paired Satellites.

Easy Pairing With Cloud Satellites Using Netcomm NF20MESH

The CloudMesh system is a turnkey, out-of-the-box solution. ISP Satellite pre-provisioning is available via a cloud portal and API, allowing for a Zero Touch configuration experience for the end-user. There is also an easy and fast alternative for in home setup using WPS buttons.

Adaptive Wi-Fi

Providing Wi-Fi AutoPilot as standard and integrated platform support for the Wi-Fi Analytics Platform means that CloudMesh can offer a superior data-driven Wi-Fi experience; both for the end user (The Wi-Fi AutoPilot dynamically and automatically scans and analyses the environment constantly, adjusting the Wi-Fi parameters as required), and for the service provider (The Wi-Fi Analytics Platform enables greater visibility into the Wi-Fi environment, reducing associated support costs and providing a better, more intuitive service).

Wi-Fi AutoPilot efficiently processes data at the edge, and is designed to deliver a reduction in latency and superior performance in real-time applications (such as gaming and video conferencing).

Easy to Pair with Satellites

Zero-touch provisioning (via a user-friendly cloud portal) or in-home setup (using the WPS button) makes pairing the Netcomm NF20MESH CloudMesh Gateway with CloudMesh Satellite simple and easy for the end user.

What’s in NetComm NF20MESH for you?

  • Mesh-enabled for seamless connection to CloudMesh Satellites
  • Automated Wi-Fi issue resolution with Wi-Fi AutoPilot
  • Gigabit connection to high-speed fibre networks
  • Support for VDSL2/ ADSL2+ and Voice
  • Wi-Fi visibility and assurance with the Wi-Fi Analytics Platform
Environmental and Physical
  • Operating temperature: 0-40 degrees C
  • Humidity: 10%-95% non-condensing
  • Storage temperature: -10-60 degrees C
  • Humidity: 5%-95% non-condensing
  • DC Input Voltage: 12V/2A
  • Dimensions: 230 (w) x 180 (h) x 70 (d) mm
  • Weight: 555g
Device Interface
  • 1 x RJ45 10/100/1000Mbps WAN port
  • 1 x ADSL / VDSL port
  • 4 x RJ45 10/100/1000Mbps LAN ports
  • 2 x RJ11 Phone ports (VoIP)
  • 1 x Reset button
  • 2 x WPS buttons (2.4GHz and 5GHz)
  • 1 x Power jack
  • 2 x USB 2.0 Ports (storage)
  • 1 x Power switch
  • LED (Power/DSL/Internet/WAN/LAN1-4/2.4GHz/5GHz/WPS/USB1-2/ Phone1-2)
  • PPPoE/PPPoA/IPoA/ Static IP/Dynamic IP/Bridge
  • ITU-T G.993.2 VDSL2
  • Supports 8a,8b,12a,12b,17a profile
  • Supports ATM and PTM
  • Supports G.INP
  • PPPoE/PPPoA/IPoA/Static IP/Dynamic IP/Bridge
  • ITU G.992.1 (G.dmt)
  • ITU G.992.2 (G.lite)
  • ITU G.992.3
  • ITU G.992.3 (Annex J)
  • ITU G.992.3 (Annex L)
  • ITU G.992.5
  • ITU G.992.5 (Annex M)
  • Supports multiple PVCs
Ethernet WAN
  • PPPoE, DHCP client, Static IP
  • Compatible with IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax and IEEE 802.11ac
  • Supports concurrent dual-band (2.4GHz/5GHz) wireless
  • SSID broadcast or in stealth mode
  • Auto/Manual Channel selection
  • WPS button (WiFi Protected Setup)
VoIP Protocol
  • SIP2.0
  • G.711, G.723, and G.726
  • FAX T.38 FAX Relay
  • File Sharing
  • DLNA
  • Firewall
  • MAC Filtering
  • Static Route
  • Dynamic Route (RIP v1/v2)
  • DMZ
  • Supports Layer 2 Bridge Mode
  • QoS
  • SNMP
  • UPnP
  • Syslog
  • Web-based UI
  • Remote Login
  • TR-069 Auto-provisioning
  • Backup/Restore Settings
  • RCM, NZ Telepermit
