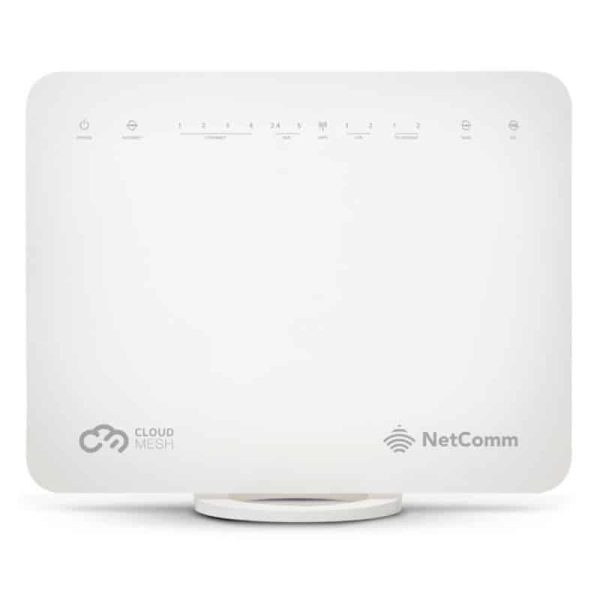

Netcomm NF18MESH CloudMesh Router – ADSL/VDSL NBN, Voice Gateway Whole Home WiFi Mesh network, runs WiFi AutoPilot

$99.00 (inc. of GST)

Featuring a Gigabit WAN port as well as VDSL2/ADSL2 technologies, the NF18MESH will connect with FTTN, FTTB, FTTC and FTTH. The Gateway also features VoIP for HD quality voice calls with the capacity to connect 2 phones.

Availability: In stock SKU: NF18MESH Category: Tag:
Netcomm logo - myithub
Availability: In stock


The Netcomm NF18MESH comes equipped with CloudMesh, and when wirelessly paired with the CloudMesh-enabled NS-01 CloudMesh Satellite, can form a powerful Whole Home Wi-Fi Mesh network. With all the controls and setting centralized on the Netcomm NF18MESH, it becomes the Wi-Fi Mesh master node, and the Wi-Fi client device can roam seamlessly between the Gateway and paired Satellites.

Netcomm nf18mesh - myithub

Advanced Wi-Fi Analytics

Providing Wi-Fi AutoPilot as standard and integrated platform support for the Wi-Fi Analytics Platform means that NetComm can offer a superior data-driven environment; both for the customer (using the Wi-Fi AutoPilot functionality to scan and analyze the environment, adjusting the Wi-Fi parameters as required), and for the service provider (With the Wi-Fi Analytics Platform enabling greater visibility into the Wi-Fi environment, reducing associated support costs and providing a better, more intuitive service).

Netcomm NF18MESH Easy to Pair with Satellites

Zero-touch provisioning (via a user-friendly cloud portal) or in-home setup (using the WPS button) makes pairing the Netcomm NF18MESH with the NS-01 simple and easy for the end user.

Made for NBN and UFB

Featuring VDSL2/ADSL2 technologies as well as a Gigabit WAN port, the Netcomm NF18MESH CloudMesh Gateway is a 3-in-1 device that provides access to VDSL/ADSL networks, and all the NBN/UFB fiber network options: FTTN, FTTB and FTTH.


Every Netcomm NF18MESH Gateway includes the CloudMesh WiFi AutoPilot.
WiFi Auto-Pilot constantly scans and analyses the end-user WiFi environment. If any detrimental changes are detected, the AutoPilot adjusts the gateway’s WiFi parameters. Any action taken is based on a patented and weighted algorithm ensuring that the internet connection experience is not compromised. It ensures that every WiFi client device is connected on the best possible channel, using the fastest available band, at the perfect RF power level and at the closest WiFi access point.


The CloudMesh system is a turnkey, out-of-the-box solution. ISP Satellite pre-provisioning is available via a cloud portal and API, allowing for a Zero Touch configuration experience for the end-user. There is also an easy and fast alternative for in-home setup using WPS buttons.

What’s in it for you?

  • Mesh Enabled for seamless connection to CloudMesh Satellites
  • Automated WiFi issue resolution with WiFi Auto Pilot
  • Gigabit connection to NBN and UFB fibre networks
  • Support for VDSL2/ ADSL2+ and Voice
  • WiFi visibility and assurance with the WiFi Analytics Platform
Environmental and Physical
  • Operating temperature: 0-40 degrees C
  • Humidity: 10%-95% non-condensing
  • Storage temperature: -10-60 degrees C
  • Humidity: 5%-95% non-condensing
  • DC Input Voltage: 12V/2A
  • Dimensions: 230 (w) x 200 (h) x 75 (d) mm
  • Weight: 558g

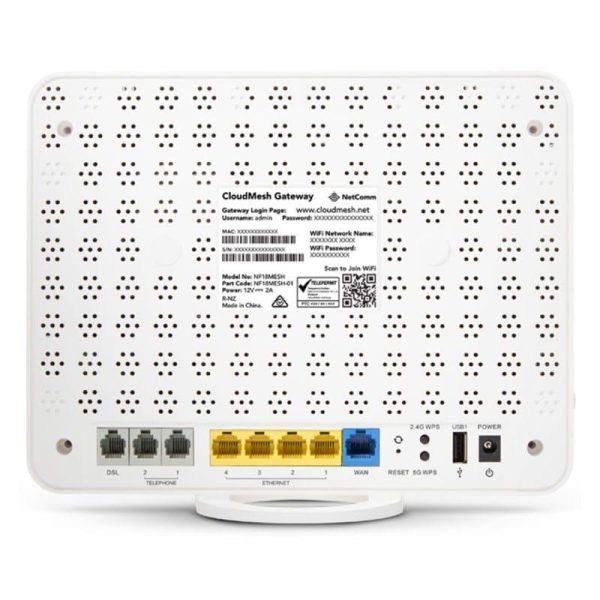

Device Interface

  • 1 x RJ45 10/100/1000Mbps WAN port
  • 1 x ADSL / VDSL port
  • 4 x RJ45 10/100/1000Mbps LAN ports
  • 2 x RJ11 Phone ports (VoIP)
  • 1 x Reset button
  • 2 x WPS buttons (2.4GHz and 5GHz)
  • 1 x Power jack
  • 2 x USB 2.0 Ports (storage)
  • 1 x Power switch
  • LED (Power/DSL/Internet/WAN/LAN1-4/2.4GHz/5GHz/WPS/USB1-2/ Phone1-2)


  • PPPoE/PPPoA/IPoA/ Static IP/Dynamic IP/Bridge
  • ITU-T G.993.2 VDSL2
  • Supports 8a,8b,12a,12b,17a profile
  • Supports ATM and PTM
  • Supports G.INP


  • PPPoE/PPPoA/IPoA/Static IP/Dynamic IP/Bridge
  • ITU G.992.1 (G.dmt)
  • ITU G.992.2 (G.lite)
  • ITU G.992.3
  • ITU G.992.3 (Annex J)
  • ITU G.992.3 (Annex L)
  • ITU G.992.5
  • ITU G.992.5 (Annex M)
  • Supports multiple PVCs

Ethernet WAN

  • PPPoE, DHCP client, Static IP


  • Compatible with IEEE 802.11b, IEEE 802.11g, IEEE 802.11n and IEEE 802.11ac
  • Supports concurrent dual band (2.4GHz/5GHz) wireless
  • SSID broadcast or in stealth mode
  • Auto/Manual Channel selection
  • WPS button (WiFi Protected Setup)

VoIP Protocol

  • SIP2.0
  • G.711, G.723 and G.726
  • FAX T.38 FAX Relay


  • File Sharing
  • DLNA


  • Firewall
  • MAC Filtering


  • Static Route
  • Dynamic Route (RIP v1/v2)
  • DMZ
  • Supports Layer 2 Bridge Mode


  • QoS
  • SNMP
  • UPnP
  • Syslog
  • Web-based UI
  • Remote Login
  • TR-069 Auto provisioning
  • Backup/Restore Settings


  • RCM, NZ Telepermit
