Mercusys MR80X wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black

$112.00 (inc. of GST)

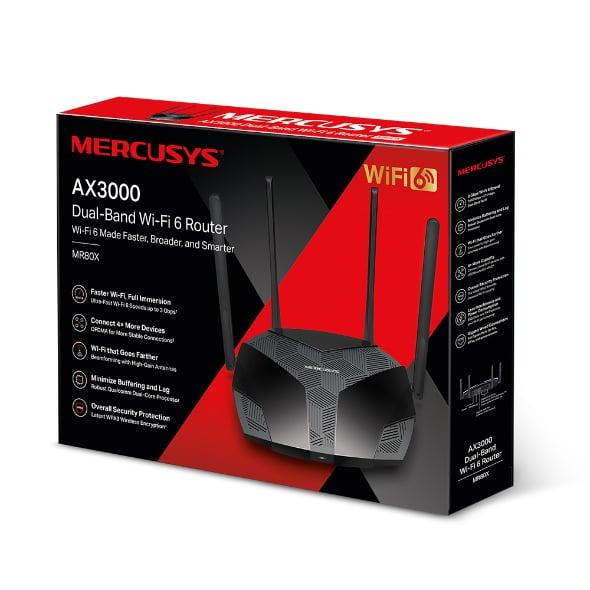

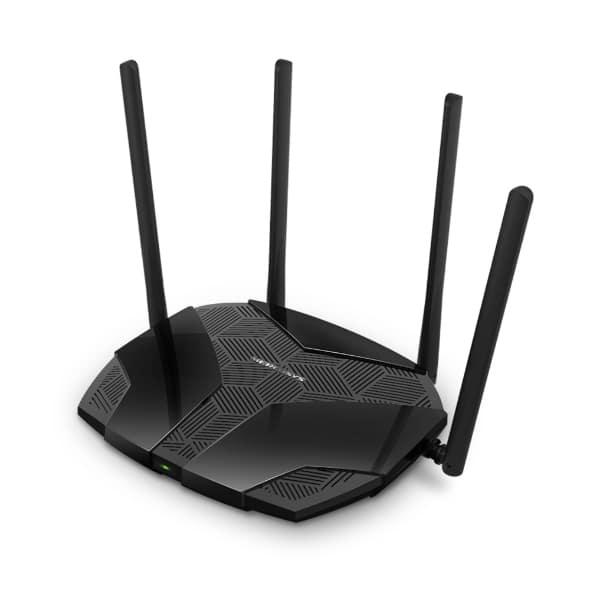

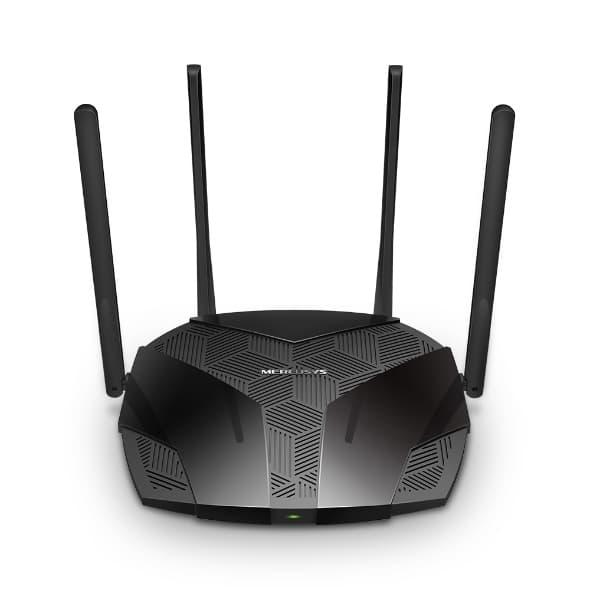

Mercusys MR80X AX3000 Dual-Band Wi-Fi 6 Router

Availability: In stock SKU: MR80X Category:
Tp-link logo - myithub
Availability: In stock


The latest Wi-Fi 6 standard applies advanced technology designed to deliver more simultaneous connections, extend Wi-Fi range, and maintain reliably fast data transmissions,satisfying demands for high-performance wireless experiences.

3 Gbps Wi-Fi 6 Speeds

Featuring 160 MHz channels and 1024-QAM,MR80X offers dramatically fast wireless connections up to 3 Gbps. Experience smooth large-file downloads and uploads, stutter-free VR, and stunning 4K streaming without lag.

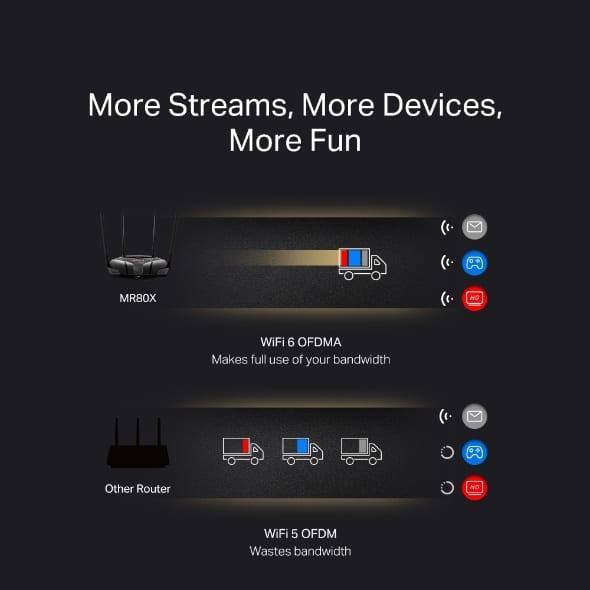

Connect 4× More Devices

With MU-MIMO and OFDMA, MR80X transmits data to and from multiple devices at the same time for 4× more capacity, greatly reducing lag and increasing transmission
efficiency under the same conditions

Minimize Buffering and Lag

Powered by a robust Qualcomm dual-core CPU, MR80X handles massive data throughput,allowing numerous bandwidth-intensive tasks to run smoothly at the same time

Eco-Friendly Power Saving

Target Wake Time reduces power consumption for your mobile and IoT devices during data transmissions to extend battery life

Expansive Wi-Fi Range

Four powerful high-gain antennas armed with advanced wireless technology provide strong signals throughout your home. Beamforming detects your connected devices and
concentrates wireless signal strength towards them, making your connections more stable

Overall Security Protection

The latest security standard, WPA3, provides improved comprehensive Wi-Fi protection to defend your devices and private information against brute-force attacks

Smart Connect

Smart Connect combines the 2.4 GHz and 5 GHz bands into a single Wi-Fi SSID and helps your devices intelligently choose the best available band that has the stronger signal and faster speed, keeping your devices always running optimally

What’s in it for you?

  • OPTIMAL WIFI 6 SPEEDS – Optimal WiFi 6 speeds reaching up to 3 Gbps for faster browsing, streamings, and downloading, all at the same time.
  •    MORE DEVICES, MORE FUN – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
  •    WiFi THAT GOES FARTHER – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
  •    OVERALL SECURITY PROTECTION – The latest WPA3 provides improved WiFi security
  •    GIGABIT WIRED CONNECTIONS – Make full use of your internet access and transfer data at dizzying speeds for peak performance
  •    ECO-FRIENDLY POWER SAVING – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
  •    LESS WIFI INTERFERENCE – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring
Ports & interfaces
  • Ethernet LAN (RJ-45) ports: 3
  • USB port: ❌
  • DC-in jack: ✔
Weight & dimensions
  • Width: 208,8 mm
  • Depth: 171,6 mm
  • Height: 41,7 mm
  • Power source type: AC
  • External power adapter: ✔
Operational conditions
  • Operating temperature (T-T): 0 - 40 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 5 - 90%
  • DHCP client: ✔
  • DHCP server: ✔
  • Universal Plug and Play (UPnP): ✔
  • Ethernet LAN: ✔
  • Ethernet LAN interface type: Gigabit Ethernet
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • Cabling technology: 10/100/1000Base-T(X)
  • Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
  • Port forwarding: ✔
  • Port triggering: ✔
  • Number of guest networks (2.4 GHz): 1
  • Number of guest networks (5 GHz): 1
  • Wireless radio: ✔
  • VPN server: OpenVPN, PPTP
  • VPN support: OpenVPN, PPTP supported
  • Security algorithms: WEP, WPA, WPA2, WPA3
  • Firewall: ✔
  • Firewall security: SPI Firewall, IP and MAC Address Binding
  • Guest access: ✔
  • DMZ support: ✔
  • Network address translation (NAT): ✔
  • NAT functionality: Port Forwarding, Port Triggering, UPnP, DMZ
Wireless LAN features
  • Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
  • Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
  • WLAN data transfer rate (max): 3000 Mbit/s
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
  • WLAN data transfer rate (first band): 2402 Mbit/s
  • WLAN data transfer rate (second band): 574 Mbit/s
Management features
  • Wi-Fi Multimedia (WMM)/(WME): ✔
  • Reset button: ✔
  • WPS push button: ✔
Packaging content
  • Cables included: LAN (RJ-45)
  • AC adapter included: ✔
  • Quick installation guide: ✔
  • Antenna design: External
  • Antenna gain level (max): 5 dBi
  • Antennas quantity: 4
  • Product type: Tabletop router
  • Product colour: Black
  • LED indicators: LAN, WAN
Mobile network
  • 3G: ❌
  • 4G: ❌
  • 5G: ❌
Logistics data
  • Harmonized System (HS) code: 85176990
WAN connection
  • Ethernet WAN: ✔
  • DSL WAN: ❌
  • SIM card slot: ❌
  • WAN connection type: RJ-45
