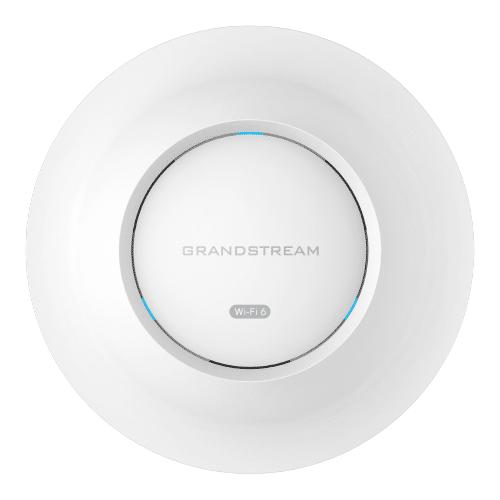

Grandstream High-performance 4×4:4 Wi-Fi 6 Indoor Access Point GWN7664

Original price was: $484.00.Current price is: $234.99. (inc. of GST)

The GWN7664 is a powerful, enterprise-grade 802.11ax Wi-Fi 6 access point, ideal for small-to-medium sized  businesses, multiple floor buildings, residential settings and commercial locations.

Availability: In stock SKU: GWN7664 Category:
Grandstream - myithub
Availability: In stock

Description

The GWN7664 is a powerful, enterprise-grade 802.11ax Wi-Fi 6 access point, ideal for medium-to-large sized businesses, multiple floor buildings, residential settings and commercial locations. Suitable for dense indoor Wi-Fi environments such as medium-to-large offices, schools, colleges/universities, hotels, convention centers, stadiums, gymnasiums, auditoriums and more.

The GWN7664 offers dual-band 4×4:4 MU-MIMO with DL/UL OFDMA technology and a sophisticated internal antenna design for stronger anti-interference, more stable connection, maximum network throughput and expanded Wi-Fi coverage range.

The GWN7664 is supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform that and makes managing your network or several networks across multiple locations easier than ever before. It also uses a controller-less network management architecture in which the controller is embedded within the product’s web user interface for easy administration of locally deployed Wi-Fi Aps.

The GWN7664 is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low latency real-time applications, mesh networks, captive portals, 512 concurrent clients and dual Gigabit network ports with PoE/PoE+, the GWN7664 is an ideal Wi-Fi access point for business-grade wireless network deployments with mediumto-high user density.

What’s in it for you?

  • 3.55Gbps aggregate wireless throughput
  • Dual-band 4×4:4 MU-MIMO with DL/UL OFDMA technology
  • Self power adaptation upon auto detection of PoE or PoE+
  • Supports up to 512 concurrent Wi-Fi client devices
  • Up to 175-meter coverage range
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/ random default password per device
  • Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management
Wi-Fi Standards
  • IEEE 802.11 a/b/g/n/ac/ax
Antennas
  • 8 individual internal antennas, 4 per band
  • 2.4GHz, gain 3dBi
  • 5 GHz, gain 4dBi
Wi-Fi Data Rates
  • 5G:
  • IEEE 802.11ax: 8 Mbps to 2402 Mbps
  • IEEE 802.11ac: 6.5 Mbps to 1733 Mbps
  • IEEE 802.11n: 6.5Mbps to 600Mbps
  • IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 2.4G:
  • IEEE 802.11ax: 8 Mbps to 1147 Mbps
  • IEEE 802.11n: 6.5Mbps to 600Mbps
  • IEEE 802.11b: 1, 2, 5.5, 11 Mbps
  • IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Frequency Bands
  • 2.4GHz Radio: 2412 - 2484 MHz
  • 5GHz Radio: 5180 - 5825 MHz
  • *Not all frequency bands can be used
Channel Bandwidth
  • 2.4G: 20 and 40 MHz (x4)
  • 5G: 20, 40 and 80 MHz (x4) or 160MHz (x2)
Wi-Fi and System Security
  • WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device
MU-MIMO
  • 4×4:4 2.4GHz
  • 4×4:4 5GHz
Coverage Range
  • Up to 175 meters
Maximum TX Power
  • 5G: 25dBm
  • 2.4G: 26dBm
Receiver Sensitivity
  • 2.4G
  • 802.11b: -99dBm@1Mbps, -91dBm@11Mbps;
  • 802.11g: -94dBm @6Mbps, -78dBm@54Mbps;
  • 802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7;
  • 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11
  • 5G
  • 802.11a: -95dBm @6Mbps, -77dBm @54Mbps;
  • 802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7
  • 802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
  • 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @MCS11
SSIDs
  • 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients
  • 512
Network Interfaces
  • 1x 1G Port and 1x 2.5G Port, support 3.5Gbps aggregate wire throughput
Auxiliary Ports
  • 1x Reset Pinhole, 1x Kensington lock
Mounting
  • Indoor wall mount or ceiling mount, kits included
LEDs
  • 1 tri-color LEDs for device tracking and status indication
Network Protocols
  • IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
  • 802.11e/WMM, VLAN, TOS
Network Management
  • Embedded controller can manage up to 50 local GWN APs
  • GWN.Cloud offers a free cloud management platform for unlimited GWN APs
  • GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
  • PoE 802.3af/ 802.3at.
  • Maximum Power Consumption: 17W
Environmental
  • Operation: 0°Cto 50°C
  • Storage: -10°C to 60°C
  • Humidity: 10% to 90% Non-condensing
Physical
  • Unit Dimension: 205.3mm(L)x205.3mm(W)x405.9mm(H); Unit Weight: 0.714Kg
  • Entire Package Dimension: 258x247x86mm; Entire Package Weight: 1.06Kg
Package Content
  • GWN7664 802.11ax Wireless AP, Mounting Kits, Quick Start Guide
Compliance
  • FCC, CE, RCM, IC
