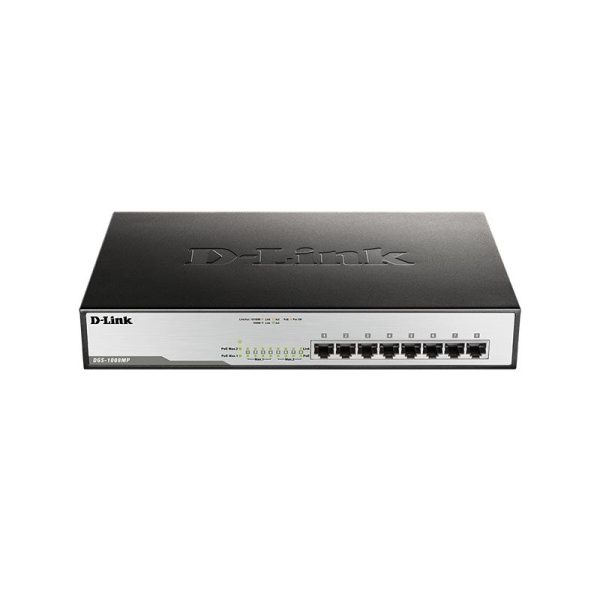

D-Link DGS-1008MP 8-Port Desktop Gigabit PoE+ Switch – 8-Port 10/100/1000 Gigabit Ethernet Ports – 8 x PoE Ports – PoE output up to 30 watts per port
$210.07(inc. of GST)
Buy now, pay smarter. Learn more
It is an ideal solution for small offices and enterprise environments looking to expand the network with a set of Power over Ethernet devices such as wireless access points, IP cameras, and IP phones
- Description
- Specifications
- Reviews
Description
The D-Link DGS-1008MP 8-Port PoE Desktop Switch is an ideal solution for small offices and enterprise environments looking to expand the network with a set of Power over Ethernet devices such as wireless access points, IP cameras, and IP phones. Built with small business and enterprise users in mind, the DGS-1008MP is a high-speed, flexible switch that features a fanless, quiet design so it can be conveniently placed anywhere in a working environment.
Power Over Ethernet
The DGS-1008MP features eight 10/100/1000BASE-T ports that support the IEEE 802.3at Power over Ethernet (PoE) standard. Each of the eight PoE ports can supply up to 30 watts, with a total combined PoE budget of 140 watts, allowing users to power up to eight IEEE 802.3at-compliant devices without requiring an additional power supply. This allows devices to be installed in locations without their own power outlet, saving on installation costs and reducing the time it takes to install new devices.
Superior Performance
The DGS-1008MP is a plug-and-play device, meaning installation is quick and easy and requires no additional configuration. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch or hub. Auto-Negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for optimal compatibility and performance.
With store-and-forward switching, the DGS-1008MP also maximizes network performance while minimizing packet loss during data transmission. Combining the convenience of PoE, superior performance, and ease of use, the DGS-1008MP is the ideal choice for flexibly expanding your network while remaining cost efficient.
Compact and Silent Design
The DGS-1008MP has a compact 11” design, so that it can be deployed in any easily accessible location on the work floor, allowing you to power a set of PoE-powered devices while avoiding additional cable clutter. Alternatively, the standardized 1U-sized housing means the switch can also be mounted in a standard 19” rack and be integrated in the server infrastructure. The DGS-1008MP is furthermore built around a fanless design. This makes the switch suitable to be used closer to, or in populated areas where it works efficiently while guaranteeing a quiet working environment.
Green Technology
The DGS-1008MP supports IEEE 802.3az Energy Efficient Ethernet (EEE), reducing power consumption of the switch when network utilization is low and minimizing operating costs during periods of inactivity. By using EEE-compliant devices with the DGS-1008MP, organizations can noticeably reduce power consumption by having the switch automatically put ports into sleep mode when they are not being used.
What’s in it for you?
- 8 Gigabit ports with PoE/PoE+ support
- 140 Watts PoE power budget
- Compact size
- Robust metal rackmountable housing
- Fanless design for silent operation
- Plug-and-play installation
Datasheet and Guide
| Size |
| 11-inch desktop/rackmount size, 1U height |
| Number of Ports |
| 8 x 10/100/1000 Mbps ports |
| Port Standards & Functions |
| IEEE 802.3i 10BASE-T Ethernet |
| IEEE 802.3u 100BASE-TX Fast Ethernet |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet |
| IEEE 802.3at Power over Ethernet |
| IEEE 802.3az Energy Efficient Ethernet |
| IEEE 802.3x Flow Control |
| ANSI/IEEE 802.3 NWay auto-negotiation |
| Switching Capacity |
| 16 Gbps switching fabric |
| Media Interface Exchange |
| Auto MDI/MDI-X |
| Transmission Method |
| Store-and-forward |
| MAC Address Table |
| 4K entries per device |
| Packet Buffer Memory |
| 192 KB per device |
| LED Indicators |
| Per port: activity / link and speed |
| Per port: power / status |
| PoE max. 1: ports 1 to 4 |
| PoE max. 2: ports 5 to 8 |
| Dimensions |
| 280 x 180 x 44 mm (11.02 x 7.08 x 1.73 inches) |
| Power Input |
| AC Input: 100 to 240 V AC, 50/60 Hz |
| Maximum PoE Budget |
| 140 W |
| PoE up to 30 W per port |
| Power Consumption |
| 11.2 W (PoE off) |
| 141.85 W (PoE on) |
| Temperature |
| Operating: 0 to 40 ˚C (32 to 104 ˚F) |
| Storage: -10 to 70 ˚C (14 to 158 ˚F) |
| Humidity |
| Operating: 0% to 95% RH non-condensing |
| Storage: 0% to 95% RH non-condensing |
| EMI |
| CE Class A |
| FCC Class A |
| VCCI Class A |
| CCC Class A |
| BSMI Class A |
| FCC Class A |
| Safety |
| cUL |
| CB |
| LVD |
| CCC |
| BSMI |
| Warranty |
| 3-Year Limited Warranty |
| Box Inclusion |
| One DGS-1008MP 8-Port 10/100/1000BASE-T Gigabit Ethernet PoE Unmanaged Switch |
| Four rubber feet with adhesive backing |
| One power Cord |
| Mounting ears for rack-mounting |
| Quick Install Guide |
