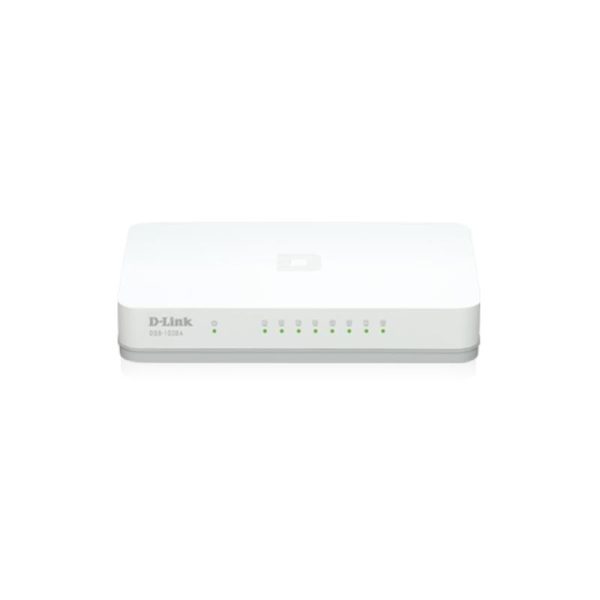

D-Link DGS-1008A 8-Port Gigabit Desktop Switch

D-Link DGS-1008A 8-Port Gigabit Desktop Switch

Availability: In stock (can be backordered) SKU: DGS-1008A

$41.26 (inc. of GST)

Buy now, pay smarter. Learn more

Ideal for home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster

The D-Link DGS-1008A is an 8-port Gigabit Switch that delivers power, performance, and reliability in one cost-effective, space-saving design

Availability: In stock (can be backordered)

Description

The DGS-1008A 8-Port Gigabit Easy Desktop Switch is a cost-effective solution that features D-Link’s Green Technology-providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. It provides eight Gigabit ports and simple setup lets you expand your network for a quick upgrade to Gigabit connectivity. Lastly, its compact size and simple design give you the freedom to place it in any environment.

Compact and Easy to Set Up

Featuring a clean, understated design, the DGS-1008A 8-Port Gigabit Easy Desktop Switch is light, compact, and fits into any decor. Simply plug in the power adapter and it’s ready to accept Ethernet connections from any device to upgrade to Gigabit speeds. Setup is so simple, no complex configurations are required!

Cost-effective Solution

The D-Link DGS-1008A 8-Port Gigabit Easy Desktop Switch is a cost-effective solution that provides network connectivity to users via eight Ethernet ports. Not only does it offer advanced features that improve performance, it also cuts costs by using less power while upgrading your network bandwidth to Gigabit speeds. The provision for eight ports lets you add more devices to your network without worrying about availability. This series simply offers the best performance and value at its price point.

Advanced Features

The DGS-1008A 8-Port Gigabit Easy Desktop Switch supports 802.3 Energy-Efficient Ethernet to help you cut power usage by automatically powering down ports that have no data activity, adding up to more savings on your electricity bill. Also featuring 802.1p Quality of Service (QoS), the DGS-1008A lets you prioritize traffic by type so that streaming media such as network telephony (VoIP) stays smooth when you need it. Other scenarios such as online gaming or digital video streaming can also be prioritized in order of importance for the best performance possible.

What’s in it for you?

  • 8 x Gigabit Ethernet ports
  • 3az Energy-Efficient Ethernet (EEE)
  • Compact Housing
  • Fanless design for quiet operation
  • D-Link Green power saving features

Datasheet and Guide

Device Interfaces

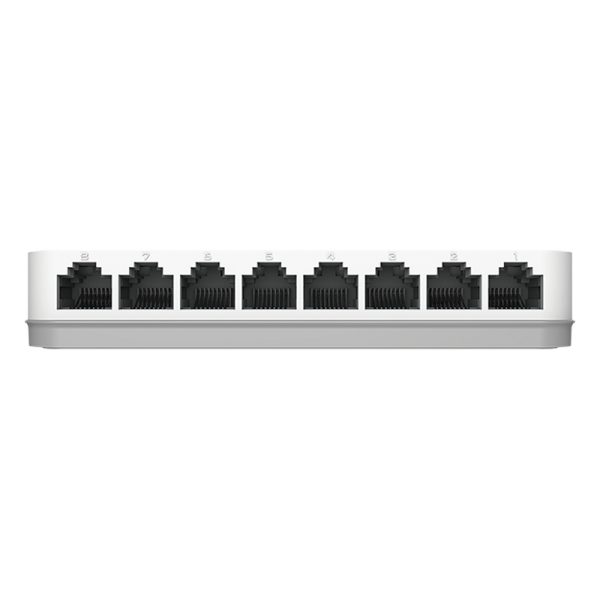

Eight 10/100/1000 Gigabit LAN ports
Standards
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Transmission Method
Store-and-forward
MAC Address Table
4 K
MAC Address Learning
Automatic Update
Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer
192 KB per device
LED Indicators
Per port: Link/Activity/Speed
Per device: Power
Media Interface Exchange
Auto MDI/MDIX adjustment for all ports
Dimensions
130 x 79 x 22 mm (5.12 x 3.11 x 0.87 inches)
Weight
130 grams (4.59 ounces)
Power
5 V/1 A Power Adapter
Power Consumption
Power On (Standby): AC input: 0.7 watts
Maximum: AC input: 4.8 watts
Temperature
Operating: 0 to 40 °C (32 to 104 °F)
Storage: -10 to 70 °C (14 to 158 °F)
Humidity
Operating: 10% to 90% non-condensing
Storage: 5% to 90% non-condensing
MTBF
1,061,267 hours
Certifications
CE class B
FCC class B
ICES-003 Class B
VCCI class B
RCM
Anatel
CCC
cUL
CB/LVD
Warranty
3-Year Limited Warranty
