Cisco ATA 192

Availability: Out of stock SKU: ATA192-3PW-K9

$177.00 (inc. of GST)

Buy now, pay smarter. Learn more

Cisco ATA 192, G.711Mu,G.711a,G.726,G.729A,G.729ab, T.38, UL 60950 Second Edition, CAN/CSA-C22.2 No. 60950 Second Edition, IEC 60950-1:2005 (Second Edition)…, CE Markings per directives 2014/30/EU and 2014/35/EU, SIP, TCP, UDP, RTP, HTTP, ARP, RTCP, ICMP, LLDP

Availability: Out of stock

Description

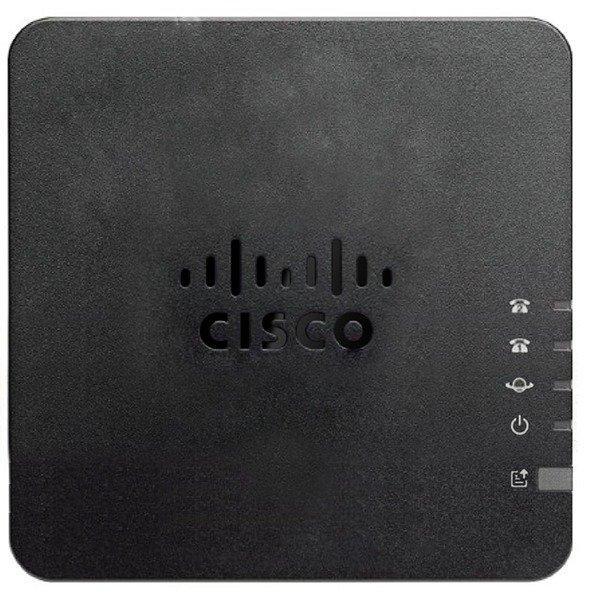

The Cisco ATA 192 Multiplatform Analog Telephone Adapter turns traditional telephone, fax, and overhead paging communications devices into IP devices for greater cost-effectiveness. Customers can take advantage of IP telephony applications by connecting their analog devices to Cisco analog telephone adapters.

The ATA 192 is the preferred solution to address the needs of customers who connect to enterprise networks, small offices, or unified communications as a service from the cloud. It has two standard FXS ports, which can be configured independently as two Session Initiation Protocol (SIP) registrations. It also has two 100BASE-T ports with an integrated high-performance router to extend local network connectivity. With the ATA 192, customers can protect and extend their existing investment in analog systems, as well as smooth their migration to pure voice over IP in a more affordable and reliable way.

The ATA 192 is designed to work with third-party call control systems and does not work with Cisco call control systems.

Ports & interfaces
  • Ethernet LAN (RJ-45) ports: 2
  • Modem (RJ-11) ports: 2
Weight & dimensions
  • Dimensions (WxDxH): 100 x 100 x 28 mm
  • Weight: 132.1 g
Operational conditions
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -10 - 60 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 10 - 95%
Protocols
  • VoIP protocols: SIP
  • Supported network protocols: TCP, UDP, RTP, HTTP, ARP, RTCP, ICMP, LLDP
  • Management protocols: SNMPv3
Network
  • DHCP client: ✔
  • Web-based management: ✔
  • Quality of Service (QoS) support: ✔
Security
  • Security algorithms: AES,HTTPS,SSH
  • DMZ support: ✔
Call management
  • Caller ID: ✔
  • Conference call: ✔
  • Call waiting: ✔
Features
  • Voice codecs: G.711Mu,G.711a,G.726,G.729A,G.729ab
  • Fax compatibility: T.38
  • Noise reduction: ✔
  • Reset button: ✔
  • LED indicators: ✔
  • Power LED: ✔
  • Safety: UL 60950 Second Edition, CAN/CSA-C22.2 No. 60950 Second Edition, IEC 60950-1:2005 (Second Edition) + A1:2009 + A2:2013 and/or AS/NZS 60950.1:2015
  • Certification: CE Markings per directives 2014/30/EU and 2014/35/EU
