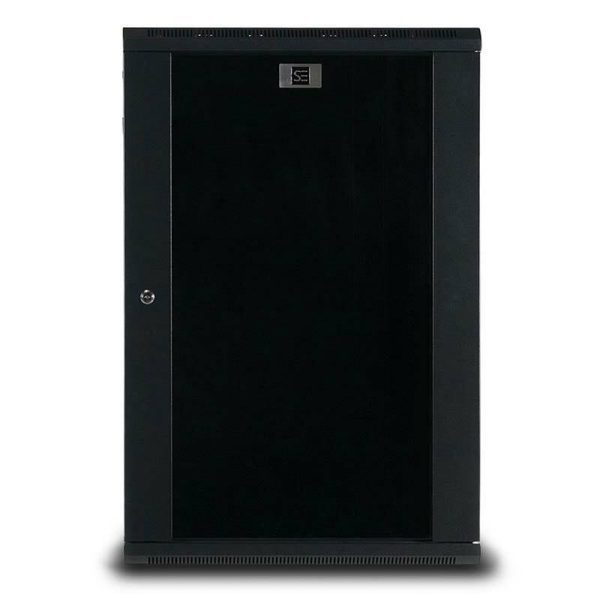

Serveredge 18RU Wall Mounted Server Cabinet – 600W x 550D x 914H

Original price was: $606.45.Current price is: $501.00. (inc. of GST)

It is ideal storage solution for the standard rack mount equipments in applications with limited floor space

Availability: Out of stock SKU: CBN-18RU-66WM Category:
Availability: Out of stock


Serveredge Wall mount Swing Frame Cabinets and Enclosures are the ideal storage solution for the standard rack mount equipments in applications with limited floor space. Constructed with a hinged wall mounting bracket & a sturdy welded frame these racks can accommodate equipments up to 8 Kgs. The vertical mounting rails are adjustable and can accommodate any standard rack mount equipment. Swing Frame feature of this rack allows easy access to the rack mounted equipments through its easy removable enclosure that is hinged to swing frame from the wall mounting brackets.

Serveredge wall mount swing frame enclosures also features perforated lockable removable side panel assuring generous airflow to keep equipment operating safely. The top and bottom panels of the enclosure include convenient cable routing ports. These wall mount swing cabinets ships fully assembled and comes with a 25-year manufacturer’s product warranty.

What’s in it for you?

  • Designed for limited space environments where equipment needs to be secure and out of the way
  • Adjustable front vertical rack mount rails
  • Locking reversible front door and locking removable side panels
  • Hinged cabinet swings away from wall bracket for easy equipment
  • Fully assembled for quick installation
  • Confirm to Standard ANSI/EIA RS-31 -D IEC297-2 DIN4191; PART1 DIN4194; PAT7 GB/T3 47M 2-92
  • Warranty : 25-years


Technical Data
Installed whole system maximum rack depth (mm)-450
Rack Height-18RU
Shipping Dimensions (WDH/mm)-650 X 600 X 953.4
Shipping weight (kg)-42.5
Unit Dimensions (WDH/mm)-600 X 550 X 903.4
Unit weight (kg)-38
Weight Capacity - Stationary (kg) -80
Grounding lug-Front and Back Door Frames
Box Inclusion
Free Standing Rack-1
M6 screws-20
M6 cage nuts-20
M6 washers-20
Fixed Shelf-1
Keys -2
Owner's Manual -1
