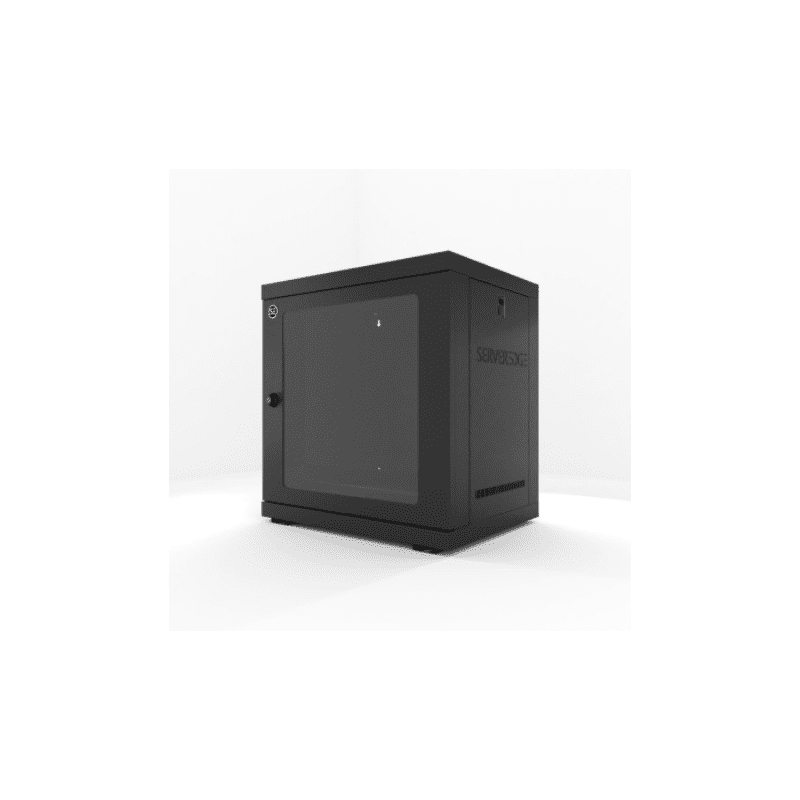

Serveredge 12RU Fully Assembled Wall Mounted Cabinet – 528W x 450D x 637H

$302.00 (inc. of GST)

IT network environments with limited floor space, Wiring receptacles, POS stations, offices & Classrooms where equipment needs to be secure and out of the way

Availability: In stock SKU: CBN-12RU-64WM Category:
Serveredge - myithub
Availability: In stock


Serveredge Wall Mount cabinets and rack enclosures are perfect for storing your standard rack mount equipments on wall in various locations such as wiring receptacles, POS stations and offices were you have access to very limited floor space.This Serveredge rack is made up of sturdy wall mounting bracket and steel frame & it can mount up to 80 Kg of rack mount hardware in 12RU of rack space. Vertical Mounting Rails in the rack are adjustable and can accommodate all standard 19 inch rack equipment.

These Serveredge wall mount racks feature a toughened & tempered lockable glass door with perforated side panels to assure a generous airflow to keep your equipment operating safely. Side Panels of this rack are lockable & removable to ensure easy access to the mounted devices. The top and bottom panels of this rack include convenient cable routing ports. The rack ships fully assembled and comes with a 25 Year manufacturer’s product warranty.

What’s in it for you?

  • Designed for limited space environments where equipment needs to be secure and out of the way
  • Adjustable front vertical rack mount rails
  • Locking, reversible front door and locking, removable side panels
  • Fully assembled for quick installation
  • Confirm to Standard ANSI/EIA RS-310-D, IEC297-2, DIN4191; PART1, DIN4194; PAT7, GB/T3047M 2-92
  • Warranty : 25-year


Physical Specifications
Installed whole system maximum rack depth (mm) : 350.0
Rack Height : 12RU
Shipping Dimensions (WDH/mm) : 650 X 500 X 687
Shipping weight (kg) : 27.5
Unit Dimensions (WDH/mm) : 600 X 450 X 637
Unit weight (kg) : 24
Colour : Black
Weight Capacity - Stationary (kg) : 80
Grounding lug : Front and Back Door Frames
Package Includes
1 x CBN-12RU-64WM Wall Mount Rack
20 x M6 screws
20 x M6 cage nuts
20 x M6 washers
1 x Fixed Shelf
2 x Keys
1 x Owner’s manual
