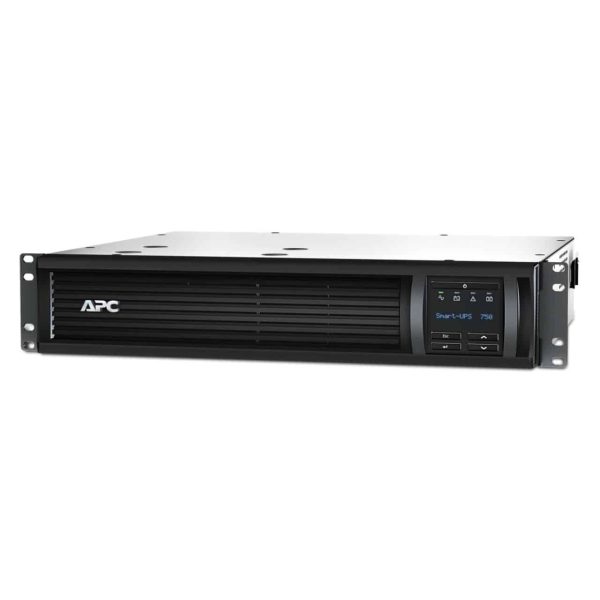

APC Smart-UPS 750VA/500W Line Interactive UPS, 2U RM, 230V/10A Input, 4x IEC C13 Outlets, Lead Acid Battery, SmartConnect Port & Slot, LCD

Original price was: $1,265.00.Current price is: $911.00. (inc. of GST)

APC SMT750RMI2UC, Line-Interactive, 750 VA, 500 W, Pure sine, 151 V, 302 V

Availability: In stock SKU: SMT750RMI2UC Category:
Upapc-cfweplus1yrbu1 - myithub
Availability: In stock


Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Documentation CD, Installation guide, Rack Mounting support rails, USB cable

Cold-start capable
Provides temporary battery power when the utility power is out.

Energy meter
Provides actual kilowatt hours of usage for energy conscious users.

Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

High online efficiency
Reduces utility costs, generates less heat.

Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.

Customize UPS capabilities with management cards.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generat

Resettable circuit breakers
Enables a quick recovery from overload events.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Predictive failure notification.
Provides early-warning fault analysis ensuring proactive component replacement.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Technical details
  • Sustainability certificates: RoHS

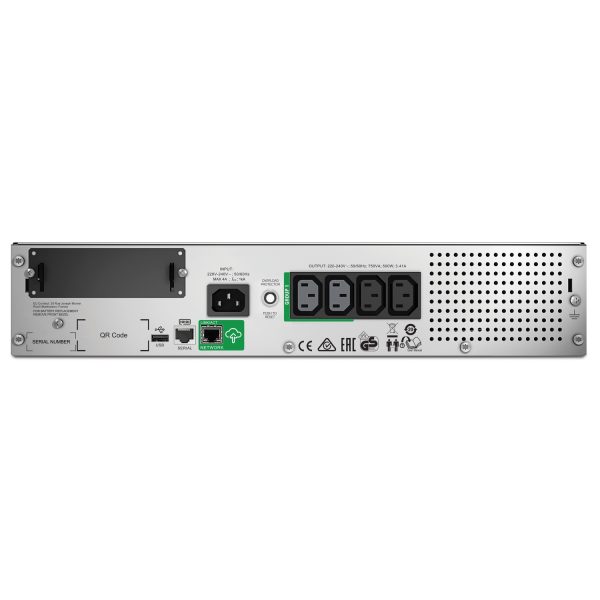

Ports & interfaces
  • AC outlet types: C13 coupler
  • Power plug: C14 coupler
  • AC outlets quantity: 4 AC outlet(s)
  • Number of output IEC jumpers: 2
  • USB port: ✔
  • Serial interface: ✔
  • Serial interface type: RJ-45
  • SmartSlot: ✔
Weight & dimensions
  • Width: 432 mm
  • Depth: 406 mm
  • Height: 89 mm
  • Weight: 17.3 kg
Operational conditions
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -15 - 45 °C
  • Operating relative humidity (H-H): 0 - 95%
  • Storage relative humidity (H-H): 0 - 95%
  • Operating altitude: 0 - 3000 m
  • Non-operating altitude: 0 - 15000 m
Packaging data
  • Rack mount kit: ✔
  • Cables included: RS-232, USB cable
  • Quick installation guide: ✔
  • Software CD: ✔
  • Package width: 546 mm
  • Package depth: 584 mm
  • Package height: 241 mm
  • Package weight: 21.2 kg
  • Battery technology: Sealed Lead Acid (VRLA)
  • Battery capacity: 168 VAh

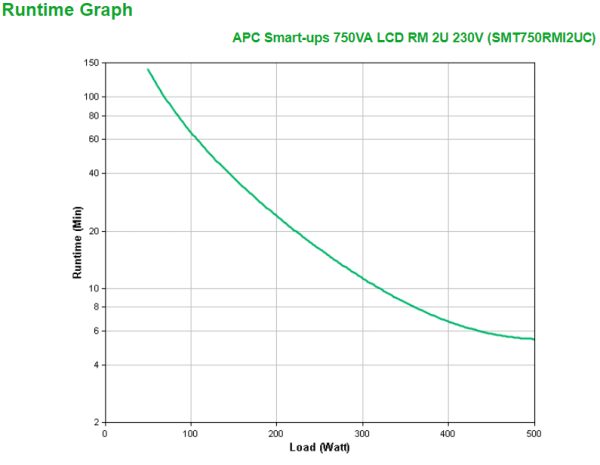

  • Typical backup time at full load: 5.5 min
  • Typical backup time at half load: 16 min
  • Battery life (max): 5 year(s)
  • Battery recharge time: 3 h
  • Hot-swap battery: ✔
  • Automatic battery test: ✔
  • Cold start: ✔

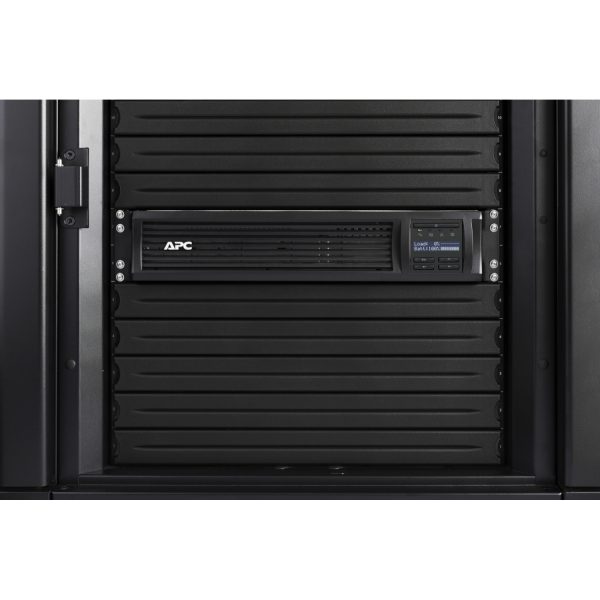

  • Form factor: Rackmount
  • Product colour: Black
  • LED indicators: Battery replacement
  • Certification: CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, UL 1778, VDE, REACH, PEP, EOLI
  • UPS topology: Line-Interactive
  • Output power capacity: 750 VA
  • Output power: 500 W
  • Waveform: Pure sine
  • Input operation voltage (min): 151 V
  • Input operation voltage (max): 302 V
  • Input frequency: 50/60 Hz
  • Output operation voltage (min): 220 V
  • Output operation voltage (max): 240 V
  • Automatic Voltage Regulation (AVR): ✔
  • Surge energy rating: 459 J
  • Hold time (max): 2 ms
  • Efficiency: 97.7%
  • Noise level: 42 dB
  • Surge protection: ✔
  • Audible alarm(s): ✔
  • Auto-restart: ✔
Logistics data
  • Quantity per pallet: 16 pc(s)
